FrostyTech Mk.II Synthetic Thermal
Heatsink Test Results
Intel Core
Extreme / Pentium D & Quad Core class heatsinks tested at
150W
Intel Core i5 / Core i3 / Core 2 Duo /
Pentium 4 / Celeron class heatsinks tested at 85W
Results based on readings from a 30x30mm copper
interface die with 150W and 85W heat loads applied on the
LGA775/1156 version of the Mk.II Test Platform. Temperature results
listed for each heatsink were calculated by determining the rise
over ambient temperatures at time of test. Information on
Frostytech's test methodology is available here. |
 |
| Socket 775/1155/1156 compatible CPU
heatsinks | |
| manufacturer: |
model
no.: |
fan
speed: |
150w
thermal test* (°c) |
85w
thermal test (°c) |
noise level (dba) |
|
| ECT |
Prometeia Mach2 GT |
|
-48.2 |
-55.9 |
49.1 |
| Corsair |
Hydro H100 |
high |
12.1 |
7.5 |
59.2 |
| Spire |
Thermax Eclipse II (2-fan) |
high |
12.6 |
8.4 |
56.9 |
| Corsair |
Hydro H80 |
high |
12.8 |
7.8 |
58.8 |
| Noctua |
NH-C14 |
high |
14.1 |
8.9 |
46.6 |
| Tuniq |
Tower 120 Extreme |
high |
14.1 |
8.4 |
43.5 |
| Evercool |
HPJ-12025 Transformer 4 (2010) |
high |
14.3 |
8.8 |
55.4 |
| Phanteks |
PH-TC14PE |
high |
14.4 |
8.5 |
49.2 |
| Noctua |
NH-D14 |
high |
14.5 |
8.7 |
48.1 |
| Thermaltake |
Frio |
high |
14.5 |
8.8 |
62.6 |
| Glacialtech |
Igloo H58 |
high |
14.9 |
8.4 |
46.4 |
| Thermolab |
Trinity |
high |
15.0 |
9.7 |
50.6 |
| Xigmatek |
SD128264 Aegir |
high |
15.0 |
9.8 |
49.1 |
| Zalman |
CNPS9900 Max |
high |
15.0 |
9.0 |
54.5 |
| Prolimatech |
Megahalems (80CFM) |
high |
15.0 |
9.2 |
53.0 |
| Coolermaster |
Hyper 612 |
high |
15.1 |
9.2 |
50.7 |
| 3Rsystem |
iceage 120 Boss II |
high |
15.4 |
9.8 |
49.9 |
| Titan |
TTC-NK85TZ |
high |
15.5 |
8.8 |
58.6 |
| Zaward |
Vapor 120 |
high |
15.6 |
9.7 |
51.6 |
| Coolink |
Corator DS |
high |
15.9 |
9.7 |
54.9 |
| Coolermaster |
Hyper 212 Evo |
high |
15.9 |
9.3 |
47.1 |
| Thermalright |
Silver Arrow |
high |
16.0 |
9.7 |
43.4 |
| Thermolab |
BADA |
high |
16.0 |
9.6 |
54.0 |
| Sunbeamtech |
Core-Contact Freezer |
high |
16.1 |
10.0 |
51.3 |
| Danamics |
LMX Extreme |
high |
16.3 |
9.5 |
55.4 |
| Zalman |
CNPS10X Quiet |
high |
16.5 |
10.4 |
46.8 |
| Zalman |
CNPS10X Flex (80CFM) |
|
16.5 |
10.6 |
51.2 |
| Zalman |
CNPS10X Performa |
high |
16.6 |
10.0 |
58.7 |
| Zalman |
CNPS12X |
high |
16.7 |
9.8 |
46.0 |
| Xigmatek |
SD1283 Gaia |
high |
16.7 |
10.2 |
44.1 |
| Sunbeamtech |
Twister 120 |
high |
16.7 |
10.7 |
51.2 |
| Zerotherm |
ZT-10D Premium |
high |
16.7 |
10.1 |
45.3 |
| Spire |
Thermax II (SP67951) |
high |
16.7 |
9.5 |
57.8 |
| Glacialtech |
Igloo H46 |
high |
16.8 |
10.6 |
44.8 |
| Prolimatech |
Megahalems (50CFM) |
high |
16.8 |
10.2 |
45.1 |
| Xigmatek |
HDT-S1283 |
high |
16.8 |
10.7 |
50.7 |
| Coolermaster |
Hyper 212 Plus |
high |
16.9 |
10.9 |
50.1 |
| Zalman |
CNPS10X Optima |
high |
17.0 |
10.2 |
49.9 |
| Titan |
TTC-NC15TZ |
high |
17.0 |
9.7 |
50.0 |
| Scythe |
SCRT-1000 Rasetsu |
high |
17.2 |
10.8 |
59.5 |
| Kingwin |
XT-1264 |
high |
17.2 |
10.5 |
45.5 |
| Thermolab |
BARAM |
|
17.3 |
10.5 |
53.0 |
| Glacialtech |
Alaska |
high |
17.4 |
10.7 |
48.3 |
| Zalman |
CNPS10X Extreme |
high |
17.6 |
10.1 |
58.2 |
| Zalman |
CNPS10X Flex (50CFM) |
|
17.6 |
10.9 |
45.4 |
| CoolIT |
Domino ALC |
high |
17.8 |
10.6 |
60.2 |
| Thermalright |
Ultra 120 |
|
17.8 |
10.6 |
53.7 |
| Xigmatek |
SD963 Loki |
high |
17.9 |
11.0 |
53.2 |
| DeepCool |
GamerStorm |
high |
17.9 |
11.6 |
44.5 |
| Akasa |
Nero AK967 |
high |
17.9 |
10.8 |
39.3 |
| Xigmatek |
DK-S1283 |
high |
17.9 |
11.0 |
49.6 |
| Zalman |
CNPS11X Extreme |
high |
18.0 |
10.9 |
50.5 |
| Thermolab |
BARAM 2010 (80 CFM) |
high |
18.0 |
10.8 |
51.3 |
| Thermaltake |
Contac 29 |
high |
18.0 |
11.4 |
48.0 |
| Zerotherm |
Nirvana NV 120 PWM |
high |
18.0 |
11.0 |
44.9 |
| Ibuypower |
IBP-Z001 |
high |
18.0 |
11.6 |
61.7 |
| Coolermaster |
Hyper Z600 |
|
18.0 |
11.6 |
47.7 |
| DeepCool |
Killer Whale Premium |
high |
18.1 |
11.7 |
52.5 |
| Xigmatek |
HDT-S1284EE |
high |
18.1 |
9.4 |
44.2 |
| Zerotherm |
FZ120 |
high |
18.2 |
11.4 |
47.6 |
| 3Rsystem |
Iceage 120 |
high |
18.2 |
12.1 |
47.9 |
| Akasa |
Venom Nano |
high |
18.3 |
10.9 |
57.5 |
| Coolage |
X120TF |
|
18.3 |
11.0 |
53.0 |
| Vantec |
VAF-1225 Aeroflow FX 120 |
high |
18.3 |
11.8 |
54.2 |
| nPowerTek |
Hurricane NPH-105 (NB fan) |
high |
18.3 |
11.2 |
47.7 |
| Glacialtech |
F101 PWM |
high |
18.4 |
11.4 |
47.5 |
| Zerotherm |
Core 92 |
high |
18.4 |
11.5 |
53.4 |
| Coolermaster |
V8 |
high |
18.4 |
11.2 |
52.6 |
| Thermalright |
Ultra 120 Extreme |
|
18.4 |
11.4 |
44.5 |
| DeepCool |
IceWind Pro |
high |
18.6 |
11.3 |
45.7 |
| NZXT |
Havik 140 |
|
18.6 |
10.6 |
52.6 |
| Spire |
Gemini SP986B1-V2-2P |
high |
18.7 |
11.1 |
44.5 |
| DeepCool |
Killer Whale |
high |
18.7 |
12.6 |
53.5 |
| XtremeGear |
HP-1216B |
high |
18.8 |
13.8 |
54.0 |
| Thermaltake |
BigTyp 14Pro |
high |
18.8 |
11.6 |
59.7 |
| Xigmatek |
HDT-SD964 |
high |
18.8 |
11.6 |
57.2 |
| SilenX |
iXtrema IXC-120HA2 |
high |
18.9 |
11.2 |
52.9 |
| Coolermaster |
Hyper 212 |
|
19.0 |
11.8 |
45.9 |
| Apack |
Zerotherm BTF92 OC Ed |
high |
19.0 |
11.2 |
53.6 |
| Zalman |
CNPS9700 LED |
high |
19.0 |
10.4 |
56.5 |
| Titan |
Siberia TTC-NC55TZ |
high |
19.2 |
11.0 |
52.5 |

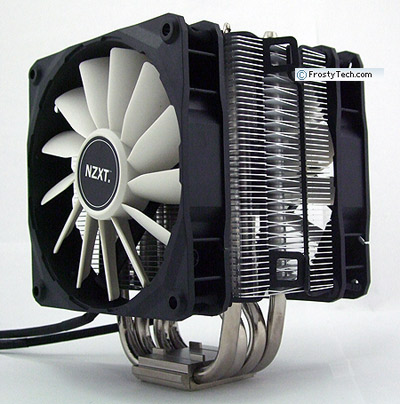

| NZXT |
Havik 120 |
high |
19.3 |
11.6 |
54.6 |
| Evercool |
Transformer 3 |
high |
19.3 |
12.5 |
48.5 |
| Thermaltake |
Jing |
high |
19.3 |
11.6 |
50.3 |
| Akasa |
Venom |
high |
19.4 |
11.4 |
54.1 |
| Xigmatek |
HDT-S983 |
high |
19.5 |
11.8 |
52.7 |
| Scythe |
Mugen |
|
19.5 |
11.4 |
46.0 |
| DeepCool |
Ice Matrix 600 |
high |
19.6 |
11.8 |
49.3 |
| Thermolab |
BADA2010 |
high |
19.6 |
12.7 |
44.3 |
| Xigmatek |
S1284 Achilles |
high |
19.6 |
11.6 |
42.7 |
| Tuniq |
Tower 120 |
high |
19.6 |
12.2 |
51.6 |
| Thermalright |
Ultra-90 |
high |
19.6 |
13.0 |
56.2 |
| DeepCool |
Ice Blade Pro |
high |
19.8 |
13.1 |
46.1 |
| Apack |
Zerotherm Nirvana 120 |
high |
19.8 |
12.3 |
49.2 |
| Enzotech |
Ultra-X |
high |
20.0 |
8.5 |
59.1 |
| Scythe |
KAMA Angle |
high |
20.1 |
21.0 |
43.3 |
| Zalman |
CNPS9900 LED |
high |
20.2 |
13.3 |
57.5 |
| SilenX |
EFZ-120HA4 |
high |
20.3 |
12.5 |
48.7 |
| Zalman |
CNPS9700NT |
high |
20.3 |
12.4 |
52.2 |
| Scythe |
Infinity SCINF-1000 |
|
20.3 |
12.6 |
37.8 |
| Cooler Master |
Hyper Z600 Black Label |
high |
20.5 |
12.4 |
49.2 |
| OCZ |
Vendetta 2 |
high |
20.5 |
12.5 |
41.9 |
| DeepCool |
Ice Warrior |
high |
20.6 |
15.2 |
45.5 |
| Dynatron |
Genius |
high |
20.6 |
13.0 |
47.2 |
| Noctua |
NH-L12 |
high |
20.7 |
12.2 |
44.7 |
| Corsair |
Hydro H50 |
high |
20.7 |
13.7 |
45.6 |
| OCZ |
Gladiator Max |
high |
20.7 |
12.6 |
42.9 |
| EKL |
GroB Clock'ner |
|
20.8 |
13.2 |
40.6 |
| Zalman |
CNPS11X Performa |
high |
20.9 |
12.4 |
48.2 |
| EKL |
GroB Clock'ner Blue Ed. |
high |
21.0 |
12.9 |
42.4 |
| Gelid |
GX-7 |
high |
21.2 |
12.7 |
50.6 |
| Glacialtech |
Siberia |
high |
21.2 |
13.6 |
47.6 |
| Vantec |
VAF-9225 Aeroflow FX92 |
high |
21.2 |
14.0 |
57.9 |
| Noctua |
NH-C12P |
high |
21.2 |
13.1 |
40.4 |
| Coolermaster |
GeminII S |
high |
21.3 |
13.4 |
49.6 |
| OCZ |
Vendetta |
high |
21.3 |
13.5 |
52.8 |
| Noctua |
NH-U12P |
high |
21.3 |
13.4 |
40.7 |
| Thermaltake |
FrioOCK |
high |
21.6 |
13.5 |
66.0 |
| Thermaltake |
SpinQ VT |
high |
21.6 |
12.7 |
50.1 |
| Akasa |
Blue Aurora AK966BL |
high |
21.6 |
14.0 |
44.4 |
| Zalman |
CNPS8900 Extreme |
high |
21.7 |
12.4 |
48.2 |
| Thermaltake |
ISGC-300 |
high |
21.7 |
12.9 |
44.0 |
| Xigmatek |
Thors Hammer S126384 |
|
21.8 |
13.2 |
46.4 |
| Apack |
Zerotherm BTF90 |
|
21.8 |
12.7 |
52.1 |
| Xigmatek |
HDT-S963 |
high |
21.9 |
13.7 |
50.2 |
| NZXT |
Havik 120 |
low |
22.1 |
12.9 |
46.1 |
| AVC |
Black Samurai |
high |
22.2 |
11.5 |
56.7 |
| Akasa |
AK-965 |
high |
22.2 |
13.8 |
48.1 |
| Zalman |
CNPS5X-SZ |
high |
22.3 |
13.9 |
54.8 |
| Gelid |
Tranquillo |
high |
22.4 |
13.9 |
41.3 |
| Coolermaster |
Hyper N520 |
|
22.4 |
14.1 |
49.0 |
| EKL |
Alpenfohn Groß Clock'ner 2010 |
|
22.6 |
14.1 |
40.2 |
| SilenX |
EFZ-120HA3 |
high |
22.7 |
11.9 |
41.7 |
| DeepCool |
Ice Matrix 400 |
high |
22.8 |
14.4 |
45.0 |
| Scythe |
Grand Kama Cross |
high |
22.8 |
14.0 |
45.9 |
| Apack |
Zerotherm BTF80 |
|
22.8 |
13.9 |
51.9 |
| Thermaltake |
MaxOrb |
high |
22.9 |
13.1 |
57.4 |
| SilenX |
EFZ-120HA5 |
high |
23.0 |
13.9 |
45.8 |
| Arctic Cooling |
Freezer 13 Pro |
high |
23.1 |
13.8 |
45.1 |
| DeepCool |
IceWing 5 Pro |
high |
23.1 |
12.3 |
53.2 |
| Scythe |
Zipang 2 |
|
23.2 |
14.0 |
37.7 |
| Coolermaster |
Hyper TX3 |
high |
23.2 |
14.0 |
56.0 |
| Zalman |
CNPS8700 LED |
high |
23.2 |
14.1 |
48.1 |
| Cooljag |
Falcon 92-AL |
high |
23.2 |
14.2 |
52.1 |
| Rosewill |
RCX-Z3 |
high |
23.3 |
14.0 |
58.6 |
| Xigmatek |
Prime SD1484 |
high |
23.4 |
14.2 |
49.7 |
| Coolink |
Silentator |
high |
23.5 |
16.4 |
41.2 |
| Nexus |
HOC-9000 |
high |
23.6 |
14.6 |
43.0 |
| Scythe |
Mine Rev. B |
|
23.6 |
15.0 |
36.8 |
| Cooljag |
Falcon 92-Cu |
high |
23.6 |
14.8 |
52.8 |
| Coolermaster |
Gemin II S524 |
high |
23.9 |
15.3 |
49.6 |
| Thermaltake |
MaxOrb EX |
high |
24.0 |
13.9 |
56.5 |
| nPowertek |
NPH-775-115HC |
|
24.2 |
15.3 |
55.0 |
| Akasa |
AK-920 |
high |
24.3 |
14.1 |
52.9 |
| Thermaltake |
V1 |
high |
24.4 |
12.3 |
59.6 |
| Intel |
FCLGA4-S Reference (P mode) |
high |
24.5 |
15.2 |
61.1 |
| Scythe |
Zipang |
|
24.7 |
15.2 |
33.1 |
| Auras |
Shagon AHC-118 |
high |
24.8 |
15.2 |
46.1 |
| Arctic Cooling |
Freezer 13 |
high |
24.8 |
14.5 |
48.5 |
| Evercool |
HPK-10025EA |
|
24.8 |
13.8 |
50.9 |
| Glacialtech |
Igloo 5750 PWM |
high |
24.9 |
14.6 |
52.3 |
| Asus |
Arctic Square |
high |
24.9 |
14.9 |
44.9 |
| Sunbeamtech |
Core-Contact Freezer 92mm Ed. |
high |
25.3 |
15.6 |
50.2 |
| AMA |
Serac 770 |
|
25.4 |
15.7 |
42.1 |
| Glacialtech |
Igloo 5751PWM |
high |
25.5 |
14.2 |
50.6 |
| Evercool |
HPJ-12025 Transformer 4 |
|
25.5 |
15.3 |
38.9 |
| Akasa |
AK-922 (EVObue) |
high |
25.5 |
15.4 |
60.3 |
| Thermaltake |
SpinQ |
high |
25.7 |
15.6 |
50.9 |
| Asus |
Lionsquare |
high |
25.7 |
15.3 |
44.7 |
| Coolermaster |
Aquagate Mini R80 |
high |
25.7 |
16.2 |
59.2 |
| Asus |
Silent Square EVO |
high |
25.8 |
15.6 |
42.8 |
| Glacialtech |
Igloo 5610 PWM |
high |
25.9 |
15.9 |
59.5 |
| Thermalright |
SI-128SE |
|
26.5 |
15.2 |
44.5 |
| Thermaltake |
DuOrb |
|
26.7 |
16.1 |
49.5 |
| Scythe |
Andy Samuri Master SCASM-1000 |
|
26.7 |
14.2 |
38.4 |
| Dynatron |
Evo-11 |
high |
26.8 |
16.4 |
54.1 |
| Titan |
Cool Idol TTC-NK75TZ |
high |
26.9 |
15.1 |
56.3 |
| Gelid |
Silent Spirit |
high |
27.0 |
17.1 |
48.5 |
| Glacialtech |
Igloo 5620 |
high |
27.1 |
16.5 |
51.0 |
| Zalman |
CNPS9300AT |
high |
27.1 |
18.2 |
55.5 |
| Noctua |
NH-U9B |
high |
27.1 |
17.2 |
41.9 |
| Thermaltake |
ISGC-400 |
high |
27.2 |
16.3 |
45.4 |
| DeepCool |
Iceedge 400XT |
high |
27.4 |
15.6 |
45.7 |
| Evercool |
HPL-815 |
high |
27.7 |
17.7 |
52.9 |
| Asus |
Triton 79 Amazing |
|
27.7 |
17.0 |
44.3 |
| ASUS |
Triton 77 |
high |
27.7 |
17.6 |
41.2 |
| Auras |
SLC-747 |
high |
27.9 |
25.7 |
52.2 |
| DeepCool |
IceWind Pro |
high |
28.0 |
16.1 |
31.4 |
| Thermaltake |
ISGC-200 |
high |
28.1 |
16.5 |
48.7 |
| Glacialtech |
Igloo 5760 PWM |
high |
28.3 |
17.4 |
50.3 |
| Coolermaster |
Vortex Plus |
high |
28.3 |
16.8 |
54.6 |
| Auras |
LPT-700 |
|
28.3 |
16.9 |
52.2 |
| Auras |
Shagon ARC118 |
high |
28.6 |
18.5 |
53.8 |
| Thermalfly |
F1-IACSHA |
high |
29.0 |
18.3 |
60.4 |
| Coolage |
Frozen Orb 2924HDC |
high |
29.2 |
18.7 |
56.0 |
| Evercool |
Transformer 6 |
high |
29.2 |
14.6 |
51.6 |
| Cooljag |
JYC 8A03A |
high |
29.3 |
19.8 |
50.6 |
| nPowertek |
TTIC NPH1000 |
|
29.3 |
16.8 |
47.5 |
| 3Rsystem |
Iceage 90 |
|
29.4 |
18.0 |
47.2 |
| Glacialtech |
Igloo 5710 Silent |
|
29.4 |
18.0 |
43.4 |
| Thermalfly |
I75DUB |
high |
29.5 |
16.8 |
68.5 |
| Zalman |
CNPS9500 AT |
|
29.6 |
17.3 |
53.3 |
| SilenX |
EFZ-92HA3 |
high |
29.8 |
17.1 |
41.6 |
| Glacialtech |
Igloo 5750 Silent |
|
29.8 |
18.5 |
35.5 |
| Coolermaster |
Hyper TX2 |
|
29.9 |
18.8 |
53.7 |
| Alpha Novatech |
PRE9060M92P |
high |
29.9 |
18.5 |
51.5 |
| Scythe |
Kama Cross |
|
30.0 |
18.8 |
40.0 |
| Akasa |
AK-961 |
|
30.0 |
18.7 |
60.7 |
| Auras |
LPT-709 |
|
30.1 |
18.6 |
43.9 |
| Rosewill |
RCX-Z2-EX |
high |
30.1 |
18.7 |
45.9 |
| nPowertek |
NPH-775-1 |
|
30.1 |
18.8 |
50.1 |
| SilenX |
EFZ-80HA2 |
high |
30.2 |
22.4 |
40.6 |
| Glacialtech |
Igloo 5710 Plus Silent |
|
30.2 |
18.5 |
39.3 |
| Glacialtech |
Igloo 5610 Silent |
|
30.4 |
17.1 |
44.7 |
| Sunon |
Waturbo |
|
30.6 |
18.3 |
57.5 |
| Auras |
CTC-868 (closed) |
|
31.0 |
18.6 |
48.7 |
| Akasa |
Revo (horizontal) |
high |
31.0 |
20.3 |
44.5 |
| Scythe |
Shuriken |
high |
31.4 |
18.8 |
38.2 |
| Apack |
CF800 |
high |
31.4 |
20.7 |
48.4 |
| Thermaltake |
Jungle512 |
high |
31.6 |
20.4 |
60.8 |
| Glacialtech |
UFO V51 Silent |
|
32.0 |
18.7 |
42.4 |
| Coolage |
Frozen Orb F0-Z924AL |
high |
32.0 |
19.9 |
48.9 |
| Xigmatek |
AIO-S80DP |
high |
32.4 |
21.4 |
55.0 |
| Scythe |
Katana II |
|
32.5 |
18.6 |
37.9 |
| Rosewill |
RCX-Z2 |
|
32.6 |
19.3 |
59.9 |
| Scythe |
Kozuti SCKZT-1000 |
high |
32.9 |
20.9 |
44.2 |
| Zalman |
CNPS7700-Cu |
high |
32.9 |
19.7 |
50.7 |
| Apack |
CF900 |
high |
32.9 |
20.3 |
48.3 |
| Evercool |
PT02-9232CP |
|
33.3 |
19.9 |
63.3 |
| Zalman |
CNPS7700-Cu LED |
high |
33.5 |
20.6 |
49.8 |
| Scythe |
Ninja Mini |
|
33.7 |
19.9 |
41.7 |
| Thermalright |
MST-977SLE |
|
33.8 |
20.0 |
46.5 |
| Intel |
Stock Pentium D |
high |
33.8 |
20.7 |
47.5 |
| Scythe |
Orochi SCORC-1000 |
|
34.0 |
20.8 |
27.8 |
| Zaward |
Gyre ZCJ010 |
high |
34.4 |
21.3 |
52.7 |
| Arctic Cooling |
Freezer 11 LP |
high |
34.5 |
20.3 |
45.3 |
| Scythe |
Big Shuriken |
high |
34.6 |
22.1 |
39.6 |
| Thermolab |
TLI-S Micro Silencer |
|
34.7 |
19.2 |
52.0 |
| nPowerTek |
SF775-2 |
high |
34.7 |
21.1 |
64.6 |
| Asus |
Silent Knight 2 |
high |
34.9 |
21.4 |
46.2 |
| Glacialtech |
Igloo 5610 Plus Silent |
|
36.1 |
20.9 |
38.0 |
| Akasa |
AK-960E |
|
36.1 |
21.4 |
56.3 |
| Gigabyte |
Volar GH-PSV21-FB |
high |
36.3 |
22.1 |
56.1 |
| Auras |
SMF-660 |
|
36.4 |
23.0 |
43.4 |
| Zalman |
CNPS7500-Cu LED |
high |
36.4 |
22.9 |
50.9 |
| Thermalfly |
I75DUH |
|
37.8 |
22.8 |
48.7 |
| Nexus |
VCT-9000 |
high |
38.4 |
24.4 |
42.9 |
| Akasa |
AK-975CU |
high |
38.4 |
23.0 |
47.7 |
| Cooljag |
OAK-H |
high |
38.5 |
22.9 |
55.7 |
| Cooljag |
OAK-H2 |
high |
38.6 |
24.1 |
55.6 |
| LS Cable |
SHS-T700 |
|
38.7 |
22.8 |
48.5 |
| 3Rsystem |
Iceage 80 Prima Mini |
|
38.8 |
24.5 |
35.4 |
| Thermaltake |
ISGC-100 |
high |
39.5 |
24.6 |
45.5 |
| Arctic Cooling |
Alpine 11 Pro |
high |
40.0 |
24.7 |
46.1 |
| nPowertek |
NPH-775-140HC |
high |
40.2 |
24.8 |
56.7 |
| SilenX |
EFZ-100HA1 |
high |
40.5 |
25.3 |
38.0 |
| Arctic Cooling |
Alpine 7 Pro |
high |
40.5 |
23.8 |
44.1 |
| Intel |
Stock Core 2 Duo E4400 |
|
41.5 |
25.2 |
41.6 |
| Intel |
Stock Core 2 Duo |
|
49.2 |
29.0 |
36.7 |
| NoFan |
CR-95C (horiz.) |
|
50.1 |
32.7 |
0.0 |
| Thermolab |
TLI-U Nano Silencer |
|
50.4 |
28.8 |
48.3 |
| Glacialtech |
Igloo 5062 Cu Light |
|
50.6 |
29.7 |
45.2 |
| Arctic Cooling |
Freezer 7LP |
high |
53.1 |
31.2 |
46.1 |
| Silverstone |
NT07-775 |
high |
55.2 |
32.9 |
36.5 |
| Glacialtech |
Igloo 5063 Light E |
|
56.5 |
32.1 |
51.5 |
| Glacialtech |
Igloo 5063 Cu Silent E |
|
57.3 |
34.4 |
41.0 |
| Glacialtech |
Igloo 5057 E |
|
58.5 |
36.1 |
53.4 |
| Asus |
Triton 75 |
|
58.6 |
16.1 |
49.6 |
| Spire |
Fourier IV SP607B3-C |
|
63.6 |
18.7 |
60.2 |
| Asus |
Triton 85 |
high |
71.5+ |
16.2 |
41.1 |
| Glacialtech |
Igloo 5058 Light E |
|
73.8 |
39.9 |
48.5 |
|
|
|
150w
thermal test (°c) |
85w
thermal test (°c) |
noise level (dba) |
| *heatsinks are ranked according to the 150w thermal
test results column (rise over ambient temp.). low temperatures with low
noise levels are considered best. for reference heatsinks with
variable-speed fans, only the high speed (12v) fan test result is included
in the comparison sheet; more detailed results reside in each specific
heatsink review. |
Intel processors
vary in power output so FrostyTech tests each heatsink with two thermal loads
that represent the upper limits of current CPU families; 150W and 85W.
With a 150W
heat load applied by the Intel LGA1155/1156/775 version of FrostyTech's synthetic thermal test platform, the NZXT Havik 120
heatsink maintains a good temperature result of 19.3°C over ambient with both
fans running at full speed (54.6dBA noise). After decreasing the speed of the
two 120mm PWM fans from 1500 to 1200RPM, CPU die temperature increases to 22.1°C
over ambient. Noise output falls to 46.1dBA, a moderately audible level.
NZXT's
Havik 120 heatsink was then tested with an 85W heat load. Under this test
scenario the Havik 120 was able to maintain a good temperature result of 11.6°C
over ambient at full fan speed and 12.9°C over ambient at reduced fan
speed.
Ultimately, the NZXT Havik 120 performs in the class of
good to very good heatsinks and only creates a moderate amount of noise at full
fan speed. There is quite lot of competition in the cooling market these days,
so while 'good' is fine, a great number of other heatsinks offer better thermal
performance at reduced noise levels.
Where only sub-161mm tall and sub-54.6dBA heatsinks are
only considered, by our reckoning there are some 59 other coolers that range
between 0-5.2°C cooler and 0-15.3dBA quieter. The Noctua NH-C14, Tuniq Tower 120
Extreme, Noctua NH-D14, Xigmatek Aegir, Thermolab Trinity and Zalman CNPS9900
Max top that list. Through sub-128mm width into the mix and that list shrinks to
the Zalman CNPS9900 Max, Zaward Vapor 120, Coolermaster Hyper 212 Evo, Thermolab
BADA, Xigmatek Gaia and Zerotherm ZT-10D.
Related Articles:
The Top 5 best heatsinks for low noise and low temperature
are ranked here. For more reviews on the latest heatsinks
and cooling solutions, rely on FrostyTech's inventory of 600+ heatsink
reviews. Here are a few other articles that you might enjoy as well.
- Zalman CNPS10X Quiet Heatsink Review
- CoolIT Domino ALC Liquid Cooling System Review
- Arctic Cooling Alpine 11 Pro Heatsink Review
- Tuniq Tower 120 Extreme Heatsink Review
- Zalman CNPS10X Extreme Heatsink Review
- Prolimatech Megahalems Heatsink Review
- Apack Zerotherm Nirvana NV120 PWM Heatsink Review
