FrostyTech Mk.II Synthetic Thermal
Heatsink Test Results
Intel
Core Extreme / Pentium D & Quad Core class heatsinks tested
at 150W
Intel Core i5 / Core 2 Duo / Pentium
4 / Celeron class heatsinks tested at 85W
Results based on readings from a 30x30mm copper
interface die with 150W and 85W heat loads applied on the
LGA775/1156 version of the Mk.II Test Platform. Temperature results
listed for each heatsink were calculated by determining the rise
over ambient temperatures at time of test. Information on
Frostytech's test methodology is available here. |
 |
|
Socket 775/1156
compatible CPU
heatsinks | |
| manufacturer: |
model
no.: |
fan
speed: |
150w
thermal test* (°c) |
85w
thermal test (°c) |
noise level (dba) |
|
| ECT |
Prometeia Mach2 GT |
|
-48.2 |
-55.9 |
49.1 |
| Tuniq |
Tower 120 Extreme |
high |
14.1 |
8.4 |
43.5 |
| Noctua |
NH-D14 |
high |
14.5 |
8.7 |
48.1 |
| Spire |
Thermax Eclipse II |
|
14.5 |
8.7 |
51.3 |
| Thermaltake |
Frio |
high |
14.5 |
8.8 |
62.6 |
| Prolimatech |
Megahalems (80CFM) |
high |
15.0 |
9.2 |
53.0 |
| 3Rsystem |
iceage 120 Boss II |
high |
15.4 |
9.8 |
49.9 |
| Titan |
TTC-NK85TZ |
high |
15.5 |
8.8 |
58.6 |
| Zaward |
Vapor 120 |
high |
15.6 |
9.7 |
51.6 |
| Coolink |
Corator DS |
high |
15.9 |
9.7 |
54.9 |
| Thermolab |
BADA |
high |
16.0 |
9.6 |
54.0 |
| Sunbeamtech |
Core-Contact Freezer |
high |
16.1 |
10.0 |
51.3 |
| Danamics |
LMX Extreme |
high |
16.3 |
9.5 |
55.4 |
| Zalman |
CNPS10X Quiet |
high |
16.5 |
10.4 |
46.8 |
| Zalman |
CNPS10X Flex (80CFM) |
|
16.5 |
10.6 |
51.2 |
| Zalman |
CNPS10X Performa |
high |
16.6 |
10.0 |
58.7 |
| Spire |
Thermax II (SP67951) |
high |
16.7 |
9.5 |
57.8 |
| Prolimatech |
Megahalems (50CFM) |
high |
16.8 |
10.2 |
45.1 |
| Xigmatek |
HDT-S1283 |
high |
16.8 |
10.7 |
50.7 |
| Coolermaster |
Hyper 212 Plus |
high |
16.9 |
10.9 |
50.1 |
| Kingwin |
XT-1264 |
high |
17.2 |
10.5 |
45.5 |
| Thermolab |
BARAM |
|
17.3 |
10.5 |
53.0 |
| Glacialtech |
Alaska |
high |
17.4 |
10.7 |
48.3 |
| Zalman |
CNPS10X Extreme |
high |
17.6 |
10.1 |
58.2 |
| Zalman |
CNPS10X Flex (50CFM) |
|
17.6 |
10.9 |
45.4 |
| CoolIT |
Domino ALC |
high |
17.8 |
10.6 |
60.2 |
| Thermalright |
Ultra 120 |
|
17.8 |
10.6 |
53.7 |
| DeepCool |
GamerStorm |
high |
17.9 |
11.6 |
44.5 |
| Akasa |
Nero AK967 |
high |
17.9 |
10.8 |
39.3 |
| Xigmatek |
DK-S1283 |
high |
17.9 |
11.0 |
49.6 |
| Thermolab |
BARAM 2010 (80 CFM) |
high |
18.0 |
10.8 |
51.3 |
| Thermaltake |
Contac 29 |
high |
18.0 |
11.4 |
48.0 |
| Zerotherm |
Nirvana NV 120 PWM |
high |
18.0 |
11.0 |
44.9 |
| Ibuypower |
IBP-Z001 |
high |
18.0 |
11.6 |
61.7 |
| Coolermaster |
Hyper Z600 |
|
18.0 |
11.6 |
47.7 |
| DeepCool |
Killer Whale Premium |
high |
18.1 |
11.7 |
52.5 |
| Xigmatek |
HDT-S1284EE |
high |
18.1 |
9.4 |
44.2 |
| Zerotherm |
FZ120 |
high |
18.2 |
11.4 |
47.6 |
| 3Rsystem |
Iceage 120 |
high |
18.2 |
12.1 |
47.9 |
| Akasa |
Venom Nano |
high |
18.3 |
10.9 |
57.5 |
| Coolage |
X120TF |
|
18.3 |
11.0 |
53.0 |
| Vantec |
VAF-1225 Aeroflow FX 120 |
high |
18.3 |
11.8 |
54.2 |
| nPowerTek |
Hurricane NPH-105 (NB fan) |
high |
18.3 |
11.2 |
47.7 |
| Glacialtech |
F101 PWM |
high |
18.4 |
11.4 |
47.5 |
| Zerotherm |
Core 92 |
high |
18.4 |
11.5 |
53.4 |
| Coolermaster |
V8 |
high |
18.4 |
11.2 |
52.6 |
| Thermalright |
Ultra 120 Extreme |
|
18.4 |
11.4 |
44.5 |
| DeepCool |
Killer Whale |
high |
18.7 |
12.6 |
53.5 |
| XtremeGear |
HP-1216B |
high |
18.8 |
13.8 |
54.0 |
| Thermaltake |
BigTyp 14Pro |
high |
18.8 |
11.6 |
59.7 |
| Xigmatek |
HDT-SD964 |
high |
18.8 |
11.6 |
57.2 |
| SilenX |
iXtrema IXC-120HA2 |
high |
18.9 |
11.2 |
52.9 |
| Coolermaster |
Hyper 212 |
|
19.0 |
11.8 |
45.9 |
| Apack |
Zerotherm BTF92 OC Ed |
high |
19.0 |
11.2 |
53.6 |
| Zalman |
CNPS9700 LED |
high |
19.0 |
10.4 |
56.5 |
| Akasa |
Venom |
high |
19.4 |
11.4 |
54.1 |
| Xigmatek |
HDT-S983 |
high |
19.5 |
11.8 |
52.7 |
| Scythe |
Mugen |
|
19.5 |
11.4 |
46.0 |
| Thermolab |
BADA2010 |
high |
19.6 |
12.7 |
44.3 |
| Xigmatek |
S1284 Achilles |
high |
19.6 |
11.6 |
42.7 |
| Tuniq |
Tower 120 |
high |
19.6 |
12.2 |
51.6 |
| Thermalright |
Ultra-90 |
high |
19.6 |
13.0 |
56.2 |
| DeepCool |
Ice Blade Pro |
high |
19.8 |
13.1 |
46.1 |
| Apack |
Zerotherm Nirvana 120 |
high |
19.8 |
12.3 |
49.2 |
| Enzotech |
Ultra-X |
high |
20.0 |
8.5 |
59.1 |
| Scythe |
KAMA Angle |
high |
20.1 |
21.0 |
43.3 |
| Zalman |
CNPS9900 LED |
high |
20.2 |
13.3 |
57.5 |
| SilenX |
EFZ-120HA4 |
high |
20.3 |
12.5 |
48.7 |
| Zalman |
CNPS9700NT |
high |
20.3 |
12.4 |
52.2 |
| Scythe |
Infinity SCINF-1000 |
|
20.3 |
12.6 |
37.8 |
| Cooler Master |
Hyper Z600 Black Label |
high |
20.5 |
12.4 |
49.2 |
| OCZ |
Vendetta 2 |
high |
20.5 |
12.5 |
41.9 |
| DeepCool |
Ice Warrior |
high |
20.6 |
15.2 |
45.5 |
| Dynatron |
Genius |
high |
20.6 |
13.0 |
47.2 |
| Corsair |
Hydro H50 |
high |
20.7 |
13.7 |
45.6 |
| OCZ |
Gladiator Max |
high |
20.7 |
12.6 |
42.9 |
| EKL |
GroB Clock'ner |
|
20.8 |
13.2 |
40.6 |
| EKL |
GroB Clock'ner Blue Ed. |
high |
21.0 |
12.9 |
42.4 |
| Vantec |
VAF-9225 Aeroflow FX92 |
high |
21.2 |
14.0 |
57.9 |
| Noctua |
NH-C12P |
high |
21.2 |
13.1 |
40.4 |
| Coolermaster |
GeminII S |
high |
21.3 |
13.4 |
49.6 |
| OCZ |
Vendetta |
high |
21.3 |
13.5 |
52.8 |
| Noctua |
NH-U12P |
high |
21.3 |
13.4 |
40.7 |
| Thermaltake |
SpinQ VT |
high |
21.6 |
12.7 |
50.1 |
| Akasa |
Blue Aurora AK966BL |
high |
21.6 |
14.0 |
44.4 |
| Thermaltake |
ISGC-300 |
high |
21.7 |
12.9 |
44.0 |
| Xigmatek |
Thors Hammer S126384 |
|
21.8 |
13.2 |
46.4 |
| Apack |
Zerotherm BTF90 |
|
21.8 |
12.7 |
52.1 |
| Xigmatek |
HDT-S963 |
high |
21.9 |
13.7 |
50.2 |
| AVC |
Black Samurai |
high |
22.2 |
11.5 |
56.7 |
| Akasa |
AK-965 |
high |
22.2 |
13.8 |
48.1 |
| Gelid |
Tranquillo |
high |
22.4 |
13.9 |
41.3 |
| Coolermaster |
Hyper N520 |
|
22.4 |
14.1 |
49.0 |
| SilenX |
EFZ-120HA3 |
high |
22.7 |
11.9 |
41.7 |
| Scythe |
Grand Kama Cross |
high |
22.8 |
14.0 |
45.9 |
| Apack |
Zerotherm BTF80 |
|
22.8 |
13.9 |
51.9 |
| Thermaltake |
MaxOrb |
high |
22.9 |
13.1 |
57.4 |
| DeepCool |
IceWing 5 Pro |
high |
23.1 |
12.3 |
53.2 |
| Scythe |
Zipang 2 |
|
23.2 |
14.0 |
37.7 |
| Coolermaster |
Hyper TX3 |
high |
23.2 |
14.0 |
56.0 |
| Zalman |
CNPS8700 LED |
high |
23.2 |
14.1 |
48.1 |
| Cooljag |
Falcon 92-AL |
high |
23.2 |
14.2 |
52.1 |
| Rosewill |
RCX-Z3 |
high |
23.3 |
14.0 |
58.6 |
| Coolink |
Silentator |
high |
23.5 |
16.4 |
41.2 |
| Nexus |
HOC-9000 |
high |
23.6 |
14.6 |
43.0 |
| Scythe |
Mine Rev. B |
|
23.6 |
15.0 |
36.8 |
| Cooljag |
Falcon 92-Cu |
high |
23.6 |
14.8 |
52.8 |
| Thermaltake |
MaxOrb EX |
high |
24.0 |
13.9 |
56.5 |
| nPowertek |
NPH-775-115HC |
|
24.2 |
15.3 |
55.0 |
| Akasa |
AK-920 |
high |
24.3 |
14.1 |
52.9 |
| Thermaltake |
V1 |
high |
24.4 |
12.3 |
59.6 |
| Intel |
FCLGA4-S Reference (P mode) |
high |
24.5 |
15.2 |
61.1 |
| Scythe |
Zipang |
|
24.7 |
15.2 |
33.1 |
| Evercool |
HPK-10025EA |
|
24.8 |
13.8 |
50.9 |
| Glacialtech |
Igloo 5750 PWM |
high |
24.9 |
14.6 |
52.3 |
| Asus |
Arctic Square |
high |
24.9 |
14.9 |
44.9 |
| Sunbeamtech |
Core-Contact Freezer 92mm Ed. |
high |
25.3 |
15.6 |
50.2 |
| AMA |
Serac 770 |
|
25.4 |
15.7 |
42.1 |
| Glacialtech |

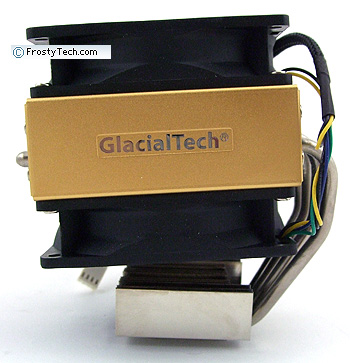

Igloo 5751PWM |
high |
25.5 |
14.2 |
50.6 |
| Evercool |
HPJ-12025 Transformer 4 |
|
25.5 |
15.3 |
38.9 |
| Akasa |
AK-922 (EVObue) |
high |
25.5 |
15.4 |
60.3 |
| Thermaltake |
SpinQ |
high |
25.7 |
15.6 |
50.9 |
| Asus |
Lionsquare |
high |
25.7 |
15.3 |
44.7 |
| Coolermaster |
Aquagate Mini R80 |
high |
25.7 |
16.2 |
59.2 |
| Asus |
Silent Square EVO |
high |
25.8 |
15.6 |
42.8 |
| Glacialtech |
Igloo 5610 PWM |
high |
25.9 |
15.9 |
59.5 |
| Thermalright |
SI-128SE |
|
26.5 |
15.2 |
44.5 |
| Thermaltake |
DuOrb |
|
26.7 |
16.1 |
49.5 |
| Scythe |
Andy Samuri Master SCASM-1000 |
|
26.7 |
14.2 |
38.4 |
| Dynatron |
Evo-11 |
high |
26.8 |
16.4 |
54.1 |
| Titan |
Cool Idol TTC-NK75TZ |
high |
26.9 |
15.1 |
56.3 |
| Gelid |
Silent Spirit |
high |
27.0 |
17.1 |
48.5 |
| Zalman |
CNPS9300AT |
high |
27.1 |
18.2 |
55.5 |
| Noctua |
NH-U9B |
high |
27.1 |
17.2 |
41.9 |
| Thermaltake |
ISGC-400 |
high |
27.2 |
16.3 |
45.4 |
| Asus |
Triton 79 Amazing |
|
27.7 |
17.0 |
44.3 |
| ASUS |
Triton 77 |
high |
27.7 |
17.6 |
41.2 |
| Auras |
SLC-747 |
high |
27.9 |
25.7 |
52.2 |
| Thermaltake |
ISGC-200 |
high |
28.1 |
16.5 |
48.7 |
| Glacialtech |
Igloo 5760 PWM |
high |
28.3 |
17.4 |
50.3 |
| Coolermaster |
Vortex Plus |
high |
28.3 |
16.8 |
54.6 |
| Auras |
LPT-700 |
|
28.3 |
16.9 |
52.2 |
| Thermalfly |
F1-IACSHA |
high |
29.0 |
18.3 |
60.4 |
| Coolage |
Frozen Orb 2924HDC |
high |
29.2 |
18.7 |
56.0 |
| Evercool |
Transformer 6 |
high |
29.2 |
14.6 |
51.6 |
| Cooljag |
JYC 8A03A |
high |
29.3 |
19.8 |
50.6 |
| nPowertek |
TTIC NPH1000 |
|
29.3 |
16.8 |
47.5 |
| 3Rsystem |
Iceage 90 |
|
29.4 |
18.0 |
47.2 |
| Glacialtech |
Igloo 5710 Silent |
|
29.4 |
18.0 |
43.4 |
| Thermalfly |
I75DUB |
high |
29.5 |
16.8 |
68.5 |
| Zalman |
CNPS9500 AT |
|
29.6 |
17.3 |
53.3 |
| Glacialtech |
Igloo 5750 Silent |
|
29.8 |
18.5 |
35.5 |
| Coolermaster |
Hyper TX2 |
|
29.9 |
18.8 |
53.7 |
| Alpha Novatech |
PRE9060M92P |
high |
29.9 |
18.5 |
51.5 |
| Scythe |
Kama Cross |
|
30.0 |
18.8 |
40.0 |
| Akasa |
AK-961 |
|
30.0 |
18.7 |
60.7 |
| Auras |
LPT-709 |
|
30.1 |
18.6 |
43.9 |
| Rosewill |
RCX-Z2-EX |
high |
30.1 |
18.7 |
45.9 |
| nPowertek |
NPH-775-1 |
|
30.1 |
18.8 |
50.1 |
| SilenX |
EFZ-80HA2 |
high |
30.2 |
22.4 |
40.6 |
| Glacialtech |
Igloo 5710 Plus Silent |
|
30.2 |
18.5 |
39.3 |
| Glacialtech |
Igloo 5610 Silent |
|
30.4 |
17.1 |
44.7 |
| Sunon |
Waturbo |
|
30.6 |
18.3 |
57.5 |
| Auras |
CTC-868 (closed) |
|
31.0 |
18.6 |
48.7 |
| Akasa |
Revo (horizontal) |
high |
31.0 |
20.3 |
44.5 |
| Scythe |
Shuriken |
high |
31.4 |
18.8 |
38.2 |
| Apack |
CF800 |
high |
31.4 |
20.7 |
48.4 |
| Thermaltake |
Jungle512 |
high |
31.6 |
20.4 |
60.8 |
| Glacialtech |
UFO V51 Silent |
|
32.0 |
18.7 |
42.4 |
| Coolage |
Frozen Orb F0-Z924AL |
high |
32.0 |
19.9 |
48.9 |
| Xigmatek |
AIO-S80DP |
high |
32.4 |
21.4 |
55.0 |
| Scythe |
Katana II |
|
32.5 |
18.6 |
37.9 |
| Rosewill |
RCX-Z2 |
|
32.6 |
19.3 |
59.9 |
| Zalman |
CNPS7700-Cu |
high |
32.9 |
19.7 |
50.7 |
| Apack |
CF900 |
high |
32.9 |
20.3 |
48.3 |
| Evercool |
PT02-9232CP |
|
33.3 |
19.9 |
63.3 |
| Zalman |
CNPS7700-Cu LED |
high |
33.5 |
20.6 |
49.8 |
| Scythe |
Ninja Mini |
|
33.7 |
19.9 |
41.7 |
| Thermalright |
MST-977SLE |
|
33.8 |
20.0 |
46.5 |
| Intel |
Stock Pentium D |
high |
33.8 |
20.7 |
47.5 |
| Scythe |
Orochi SCORC-1000 |
|
34.0 |
20.8 |
27.8 |
| Zaward |
Gyre ZCJ010 |
high |
34.4 |
21.3 |
52.7 |
| Scythe |
Big Shuriken |
high |
34.6 |
22.1 |
39.6 |
| Thermolab |
TLI-S Micro Silencer |
|
34.7 |
19.2 |
52.0 |
| nPowerTek |
SF775-2 |
high |
34.7 |
21.1 |
64.6 |
| Asus |
Silent Knight 2 |
high |
34.9 |
21.4 |
46.2 |
| Glacialtech |
Igloo 5610 Plus Silent |
|
36.1 |
20.9 |
38.0 |
| Akasa |
AK-960E |
|
36.1 |
21.4 |
56.3 |
| Gigabyte |
Volar GH-PSV21-FB |
high |
36.3 |
22.1 |
56.1 |
| Auras |
SMF-660 |
|
36.4 |
23.0 |
43.4 |
| Zalman |
CNPS7500-Cu LED |
high |
36.4 |
22.9 |
50.9 |
| Thermalfly |
I75DUH |
|
37.8 |
22.8 |
48.7 |
| Nexus |
VCT-9000 |
high |
38.4 |
24.4 |
42.9 |
| Akasa |
AK-975CU |
high |
38.4 |
23.0 |
47.7 |
| Cooljag |
OAK-H |
high |
38.5 |
22.9 |
55.7 |
| Cooljag |
OAK-H2 |
high |
38.6 |
24.1 |
55.6 |
| LS Cable |
SHS-T700 |
|
38.7 |
22.8 |
48.5 |
| 3Rsystem |
Iceage 80 Prima Mini |
|
38.8 |
24.5 |
35.4 |
| Thermaltake |
ISGC-100 |
high |
39.5 |
24.6 |
45.5 |
| Arctic Cooling |
Alpine 11 Pro |
high |
40.0 |
24.7 |
46.1 |
| nPowertek |
NPH-775-140HC |
high |
40.2 |
24.8 |
56.7 |
| SilenX |
EFZ-100HA1 |
high |
40.5 |
25.3 |
38.0 |
| Arctic Cooling |
Alpine 7 Pro |
high |
40.5 |
23.8 |
44.1 |
| Intel |
Stock Core 2 Duo E4400 |
|
41.5 |
25.2 |
41.6 |
| Glacialtech |
Igloo 5751PWM |
low |
44.4 |
27.7 |
38.5 |
| Intel |
Stock Core 2 Duo |
|
49.2 |
29.0 |
36.7 |
| Thermolab |
TLI-U Nano Silencer |
|
50.4 |
28.8 |
48.3 |
| Glacialtech |
Igloo 5062 Cu Light |
|
50.6 |
29.7 |
45.2 |
| Arctic Cooling |
Freezer 7LP |
high |
53.1 |
31.2 |
46.1 |
| Silverstone |
NT07-775 |
high |
55.2 |
32.9 |
36.5 |
| Glacialtech |
Igloo 5063 Light E |
|
56.5 |
32.1 |
51.5 |
| Glacialtech |
Igloo 5063 Cu Silent E |
|
57.3 |
34.4 |
41.0 |
| Glacialtech |
Igloo 5057 E |
|
58.5 |
36.1 |
53.4 |
| Asus |
Triton 75 |
|
58.6 |
16.1 |
49.6 |
| Spire |
Fourier IV SP607B3-C |
|
63.6 |
18.7 |
60.2 |
| Asus |
Triton 85 |
high |
71.5+ |
16.2 |
41.1 |
| Glacialtech |
Igloo 5058 Light E |
|
73.8 |
39.9 |
48.5 |
|
|
|
150w
thermal test (°c) |
85w
thermal test (°c) |
noise level (dba) |
| *heatsinks are ranked according to the 150w thermal
test results column (rise over ambient temp.). low temperatures with low
noise levels are considered best. for reference heatsinks with
variable-speed fans, only the high speed (12v) fan test result is included
in the comparison sheet; more detailed results reside in each specific
heatsink review. |
the heat
output from intel processors varies, so frostytech tests with two thermal values
that represent the upper limits of existing cpu families.
With a 150W heat load
applied by the Intel LGA775 version of FrostyTech's synthetic thermal test
platform, the Glacialtech Igloo 5751 PWM heatsink maintains a temperature result
of 25.5°C over ambient (50.6dBA noise) at full fan speed.
After the
lower fan speed was reduced to 800RPM, CPU die temperatures rose to a
satisfactory 44.4°C over ambient while noise output fell to 38.5dBA. Not great,
but sufficient to keep the a CPU operational.
The Igloo
5751 PWM heatsink was then tested with an 85W heat load, and in this scenario
maintained a test result of 14.2°C over ambient temperature at full fan speed,
and 27.7°C with the lower fan operating at reduced fan speed.
Based on these test results, it's pretty clear that this
heatsink performs best when the intake airflow and exhaust airflow are
relatively balanced.
When the Glacialtech Igloo 5751PWM heatsink is
operating at a nearly balanced situation 1400RPM vs. 1800RPM the heatsink
performs fairly well, certainly better than the original Igloo 5750PWM heatsink
model. When airflow is unbalanced, 1400RPM vs. 800RPM, the Igloo 5751PWM
heatsink just isn't that effective and the poor thermal results are the
consequence.
Related Articles:
The Top 5 best heatsinks for low noise and low temperature
are ranked here. For more reviews on the latest heatsinks
and cooling solutions, rely on FrostyTech's inventory of 400+ heatsink
reviews. Here are a few other articles that you might enjoy as well.
- Zalman CNPS10X Quiet Heatsink Review
- CoolIT Domino ALC Liquid Cooling System Review
- Arctic Cooling Alpine 11 Pro Heatsink Review
- Tuniq Tower 120 Extreme Heatsink Review
- Zalman CNPS10X Extreme Heatsink Review
- Prolimatech Megahalems Heatsink Review
- Apack Zerotherm Nirvana NV120 PWM Heatsink Review
