FrostyTech Mk.II Synthetic Thermal
Heatsink Test Results
Intel
Pentium D / Extreme Edition & Quad Core class heatsinks tested
at 150W
Intel Core 2 Duo / Pentium 4 /
Celeron class heatsinks tested at 85W
Results based on readings from a 30x30mm copper
interface die with 150W and 85W heat loads applied on the LGA775
version of the Mk.II Test Platform. Temperature results listed for
each heatsink were calculated by determining the rise over ambient
temperatures at time of test. Information on Frostytech's test
methodology is available here. |
 |
| Socket 775 compatible CPU
heatsinks | |
| manufacturer: |
model
no.: |
fan
speed: |
150w
thermal test* (°c) |
85w
thermal test (°c) |
noise level (dba) |
|
| Tuniq |
Tower 120 Extreme |
high |
14.1 |
8.4 |
43.5 |
| Noctua |
NH-D14 |
high |
14.5 |
8.7 |
48.1 |
| Spire |
Thermax Eclipse |
|
14.5 |
8.7 |
51.3 |
| Thermaltake |
Frio |
high |
14.5 |
8.8 |
62.6 |
| Prolimatech |
Megahalems (80CFM) |
high |
15.0 |
9.2 |
53.0 |
| 3Rsystem |
iceage 120 Boss II |
high |
15.4 |
9.8 |
49.9 |
| Titan |
TTC-NK85TZ |
high |
15.5 |
8.8 |
58.6 |
| Zaward |
Vapor 120 |
high |
15.6 |
9.7 |
51.6 |
| Thermolab |
BADA |
high |
16.0 |
9.6 |
54.0 |
| Sunbeamtech |
Core-Contact Freezer |
high |
16.1 |
10.0 |
51.3 |
| Zalman |
CNPS10X Quiet |
high |
16.5 |
10.4 |
46.8 |
| Zalman |
CNPS10X Flex (80CFM) |
|
16.5 |
10.6 |
51.2 |
| Zalman |
CNPS10X Performa |
high |
16.6 |
10.0 |
58.7 |
| Spire |
Thermax II (SP67951) |
high |
16.7 |
9.5 |
57.8 |
| Prolimatech |
Megahalems (50CFM) |
high |
16.8 |
10.2 |
45.1 |
| Xigmatek |
HDT-S1283 |
high |
16.8 |
10.7 |
50.7 |
| Coolermaster |
Hyper 212 Plus |
high |
16.9 |
10.9 |
50.1 |
| Kingwin |
XT-1264 |
high |
17.2 |
10.5 |
45.5 |
| Thermolab |
BARAM |
|
17.3 |
10.5 |
53.0 |
| Zalman |
CNPS10X Extreme |
high |
17.6 |
10.1 |
58.2 |
| Zalman |
CNPS10X Flex (50CFM) |
|
17.6 |
10.9 |
45.4 |
| CoolIT |
Domino ALC |
high |
17.8 |
10.6 |
60.2 |
| Thermalright |
Ultra 120 |
|
17.8 |
10.6 |
53.7 |
| Akasa |
Nero AK967 |
high |
17.9 |
10.8 |
39.3 |
| Xigmatek |
DK-S1283 |
high |
17.9 |
11.0 |
49.6 |
| Thermolab |
BARAM 2010 (80 CFM) |
high |
18.0 |
10.8 |
51.3 |
| Thermaltake |
Contac 29 |
high |
18.0 |
11.4 |
48.0 |
| Zerotherm |
Nirvana NV 120 PWM |
high |
18.0 |
11.0 |
44.9 |
| Ibuypower |
IBP-Z001 |
high |
18.0 |
11.6 |
61.7 |
| Coolermaster |
Hyper Z600 |
|
18.0 |
11.6 |
47.7 |
| DeepCool |
Killer Whale Premium |
high |
18.1 |
11.7 |
52.5 |
| Xigmatek |
HDT-S1284EE |
high |
18.1 |
9.4 |
44.2 |
| Zerotherm |
FZ120 |
high |
18.2 |
11.4 |
47.6 |
| 3Rsystem |
Iceage 120 |
high |
18.2 |
12.1 |
47.9 |
| Coolage |
X120TF |
|
18.3 |
11.0 |
53.0 |
| Vantec |
VAF-1225 Aeroflow FX 120 |
high |
18.3 |
11.8 |
54.2 |
| nPowerTek |
Hurricane NPH-105 (NB fan) |
high |
18.3 |
11.2 |
47.7 |
| Glacialtech |
F101 PWM |
high |
18.4 |
11.4 |
47.5 |
| Zerotherm |
Core 92 |
high |
18.4 |
11.5 |
53.4 |
| Coolermaster |
V8 |
high |
18.4 |
11.2 |
52.6 |
| Thermalright |
Ultra 120 Extreme |
|
18.4 |
11.4 |
44.5 |
| DeepCool |
Killer Whale |
high |
18.7 |
12.6 |
53.5 |
| XtremeGear |
HP-1216B |
high |
18.8 |
13.8 |
54.0 |
| Thermaltake |
BigTyp 14Pro |
high |
18.8 |
11.6 |
59.7 |
| Xigmatek |
HDT-SD964 |
high |
18.8 |
11.6 |
57.2 |
| SilenX |
iXtrema IXC-120HA2 |
high |
18.9 |
11.2 |
52.9 |
| Coolermaster |
Hyper 212 |
|
19.0 |
11.8 |
45.9 |
| Apack |
Zerotherm BTF92 OC Ed |
high |
19.0 |
11.2 |
53.6 |
| Zalman |
CNPS9700 LED |
high |
19.0 |
10.4 |
56.5 |
| Xigmatek |
HDT-S983 |
high |
19.5 |
11.8 |
52.7 |
| Scythe |
Mugen |
|
19.5 |
11.4 |
46.0 |
| Xigmatek |
S1284 Achilles |
high |
19.6 |
11.6 |
42.7 |
| Tuniq |
Tower 120 |
high |
19.6 |
12.2 |
51.6 |
| Thermalright |
Ultra-90 |
high |
19.6 |
13.0 |
56.2 |
| DeepCool |
Ice Blade Pro |
high |
19.8 |
13.1 |
46.1 |
| Apack |
Zerotherm Nirvana 120 |
high |
19.8 |
12.3 |
49.2 |
| Enzotech |
Ultra-X |
high |
20.0 |
8.5 |
59.1 |
| Scythe |
KAMA Angle |
high |
20.1 |
21.0 |
43.3 |
| Zalman |
CNPS9900 LED |
high |
20.2 |
13.3 |
57.5 |
| Zalman |
CNPS9700NT |
high |
20.3 |
12.4 |
52.2 |
| Scythe |
Infinity SCINF-1000 |
|
20.3 |
12.6 |
37.8 |
| Cooler Master |
Hyper Z600 Black Label |
high |
20.5 |
12.4 |
49.2 |
| OCZ |
Vendetta 2 |
high |
20.5 |
12.5 |
41.9 |
| Dynatron |
Genius |
high |
20.6 |
13.0 |
47.2 |
| Corsair |
Hydro H50 |
high |
20.7 |
13.7 |
45.6 |
| OCZ |
Gladiator Max |
high |
20.7 |
12.6 |
42.9 |
| EKL |
GroB Clock'ner |
|
20.8 |
13.2 |
40.6 |
| EKL |
GroB Clock'ner Blue Ed. |
high |
21.0 |
12.9 |
42.4 |
| Vantec |
VAF-9225 Aeroflow FX92 |
high |
21.2 |
14.0 |
57.9 |
| Noctua |
NH-C12P |
high |
21.2 |
13.1 |
40.4 |
| Coolermaster |
GeminII S |
high |
21.3 |
13.4 |
49.6 |
| OCZ |
Vendetta |
high |
21.3 |
13.5 |
52.8 |
| Noctua |
NH-U12P |
high |
21.3 |
13.4 |
40.7 |
| Thermaltake |
SpinQ VT |
high |
21.6 |
12.7 |
50.1 |
| Akasa |
Blue Aurora AK966BL |
high |
21.6 |
14.0 |
44.4 |
| Thermaltake |
ISGC-300 |
high |
21.7 |
12.9 |
44.0 |
| Xigmatek |
Thors Hammer S126384 |
|
21.8 |
13.2 |
46.4 |
| Apack |
Zerotherm BTF90 |
|
21.8 |
12.7 |
52.1 |
| Xigmatek |
HDT-S963 |
high |
21.9 |
13.7 |
50.2 |
| AVC |
Black Samurai |
high |
22.2 |
11.5 |
56.7 |
| Akasa |
AK-965 |
high |
22.2 |
13.8 |
48.1 |
| Gelid |
Tranquillo |
high |
22.4 |
13.9 |
41.3 |
| Coolermaster |
Hyper N520 |
|
22.4 |
14.1 |
49.0 |
| Scythe |
Grand Kama Cross |
high |
22.8 |
14.0 |
45.9 |
| Apack |
Zerotherm BTF80 |
|
22.8 |
13.9 |
51.9 |
| Thermaltake |
MaxOrb |
high |
22.9 |
13.1 |
57.4 |
| DeepCool |
IceWing 5 Pro |
high |
23.1 |
12.3 |
53.2 |
| Scythe |
Zipang 2 |
|
23.2 |
14.0 |
37.7 |
| Coolermaster |
Hyper TX3 |
high |
23.2 |
14.0 |
56.0 |
| Zalman |
CNPS8700 LED |
high |
23.2 |
14.1 |
48.1 |
| Cooljag |
Falcon 92-AL |
high |
23.2 |
14.2 |
52.1 |
| Rosewill |
RCX-Z3 |
high |
23.3 |
14.0 |
58.6 |
| Coolink |
Silentator |
high |
23.5 |
16.4 |
41.2 |
| Nexus |
HOC-9000 |
high |
23.6 |
14.6 |
43.0 |
| Scythe |
Mine Rev. B |
|
23.6 |
15.0 |
36.8 |
| Cooljag |
Falcon 92-Cu |
high |
23.6 |
14.8 |
52.8 |
| Thermaltake |
MaxOrb EX |
high |
24.0 |
13.9 |
56.5 |
| nPowertek |
NPH-775-115HC |
|
24.2 |
15.3 |
55.0 |
| Akasa |
AK-920 |
high |
24.3 |
14.1 |
52.9 |
| Thermaltake |
V1 |
high |
24.4 |
12.3 |
59.6 |
| Intel |
FCLGA4-S Reference (P mode) |
high |
24.5 |
15.2 |
61.1 |
| Scythe |
Zipang |
|
24.7 |
15.2 |
33.1 |
| Evercool |
HPK-10025EA |
|
24.8 |
13.8 |
50.9 |
| Glacialtech |
Igloo 5750 PWM |
high |
24.9 |
14.6 |
52.3 |
| Asus |
Arctic Square |
high |
24.9 |
14.9 |
44.9 |
| Sunbeamtech |
Core-Contact Freezer 92mm Ed. |
high |
25.3 |
15.6 |
50.2 |
| AMA |
Serac 770 |
|
25.4 |
15.7 |
42.1 |
| Evercool |
HPJ-12025 Transformer 4 |
|
25.5 |
15.3 |
38.9 |
| Akasa |
AK-922 (EVObue) |
high |
25.5 |
15.4 |
60.3 |
| Thermaltake |
SpinQ |
high |
25.7 |
15.6 |
50.9 |
| Asus |
Lionsquare |
high |
25.7 |
15.3 |
44.7 |
| Coolermaster |
Aquagate Mini R80 |
high |
25.7 |
16.2 |
59.2 |
| Asus |
Silent Square EVO |
high |
25.8 |
15.6 |
42.8 |
| Glacialtech |
Igloo 5610 PWM |
high |
25.9 |
15.9 |
59.5 |
| Thermalright |
SI-128SE |
|
26.5 |
15.2 |
44.5 |
| Thermaltake |
DuOrb |
|
26.7 |
16.1 |
49.5 |
| Scythe |
Andy Samuri Master SCASM-1000 |
|
26.7 |
14.2 |
38.4 |
| Dynatron |
Evo-11 |
high |
26.8 |
16.4 |
54.1 |
| Titan |
Cool Idol TTC-NK75TZ |
high |
26.9 |
15.1 |
56.3 |
| Gelid |
Silent Spirit |
high |
27.0 |
17.1 |
48.5 |
| Zalman |
CNPS9300AT |
high |
27.1 |
18.2 |
55.5 |
| Noctua |
NH-U9B |
high |
27.1 |
17.2 |
41.9 |
| Thermaltake |
ISGC-400 |
high |
27.2 |
16.3 |
45.4 |
| Asus |
Triton 79 Amazing |
|
27.7 |
17.0 |
44.3 |
| ASUS |
Triton 77 |
high |
27.7 |
17.6 |
41.2 |
| Auras |
SLC-747 |
high |
27.9 |
25.7 |
52.2 |
| Thermaltake |
ISGC-200 |
high |
28.1 |
16.5 |
48.7 |
| Coolermaster |
Vortex Plus |
high |
28.3 |
16.8 |
54.6 |
| Auras |
LPT-700 |
|
28.3 |
16.9 |
52.2 |
| Thermalfly |
F1-IACSHA |
high |
29.0 |
18.3 |
60.4 |
| Coolage |
Frozen Orb 2924HDC |
high |
29.2 |
18.7 |
56.0 |
| Evercool |
Transformer 6 |
high |
29.2 |
14.6 |
51.6 |
| Cooljag |
JYC 8A03A |
high |
29.3 |
19.8 |
50.6 |
| nPowertek |
TTIC NPH1000 |
|
29.3 |
16.8 |
47.5 |
| 3Rsystem |
Iceage 90 |
|
29.4 |
18.0 |
47.2 |
| Glacialtech |
Igloo 5710 Silent |
|
29.4 |
18.0 |
43.4 |
| Thermalfly |
I75DUB |
high |
29.5 |
16.8 |
68.5 |
| Zalman |
CNPS9500 AT |
|
29.6 |
17.3 |
53.3 |
| Glacialtech |
Igloo 5750 Silent |
|
29.8 |
18.5 |
35.5 |
| Coolermaster |
Hyper TX2 |
|
29.9 |
18.8 |
53.7 |
| Alpha Novatech |
PRE9060M92P |
high |
29.9 |
18.5 |
51.5 |
| Scythe |
Kama Cross |
|
30.0 |
18.8 |
40.0 |
| Akasa |
AK-961 |
|
30.0 |
18.7 |
60.7 |
| Auras |
LPT-709 |
|
30.1 |
18.6 |
43.9 |
| Rosewill |
RCX-Z2-EX |
high |
30.1 |
18.7 |
45.9 |
| nPowertek |
NPH-775-1 |
|
30.1 |
18.8 |
50.1 |
| Glacialtech |
Igloo 5710 Plus Silent |
|
30.2 |
18.5 |
39.3 |
| Glacialtech |
Igloo 5610 Silent |
|
30.4 |
17.1 |
44.7 |
| Sunon |
Waturbo |
|
30.6 |
18.3 |
57.5 |
| Auras |
CTC-868 (closed) |
|
31.0 |
18.6 |
48.7 |
| Akasa |
Revo (horizontal) |
high |
31.0 |
20.3 |
44.5 |
| Scythe |
Shuriken |
high |
31.4 |
18.8 |
38.2 |
| Apack |
CF800 |
high |
31.4 |
20.7 |
48.4 |
| Thermaltake |
Jungle512 |
high |
31.6 |
20.4 |
60.8 |
| Glacialtech |
UFO V51 Silent |
|
32.0 |
18.7 |
42.4 |
| Coolage |
Frozen Orb F0-Z924AL |
high |
32.0 |
19.9 |
48.9 |
| Xigmatek |
AIO-S80DP |
high |
32.4 |
21.4 |
55.0 |
| Scythe |
Katana II |
|
32.5 |
18.6 |
37.9 |
| Rosewill |
RCX-Z2 |
|
32.6 |
19.3 |
59.9 |
| Zalman |
CNPS7700-Cu |
high |
32.9 |
19.7 |
50.7 |
| Apack |
CF900 |
high |
32.9 |
20.3 |
48.3 |
| Evercool |
PT02-9232CP |
|
33.3 |
19.9 |
63.3 |
| Zalman |
CNPS7700-Cu LED |
high |
33.5 |
20.6 |
49.8 |
| Scythe |
Ninja Mini |
|
33.7 |
19.9 |
41.7 |
| Thermalright |
MST-977SLE |
|
33.8 |
20.0 |
46.5 |
| Intel |
Stock Pentium D |
high |
33.8 |
20.7 |
47.5 |
| Zaward |
Vapor 120 |
low |
33.9 |
20.1 |
28.5 |
| Scythe |
Orochi SCORC-1000 |
|
34.0 |
20.8 |
27.8 |
| Zaward |
Gyre ZCJ010 |
high |
34.4 |
21.3 |
52.7 |
| Scythe |
Big Shuriken |
high |
34.6 |
22.1 |
39.6 |
| Thermolab |
TLI-S Micro Silencer |
|
34.7 |
19.2 |
52.0 |
| nPowerTek |
SF775-2 |
high |
34.7 |
21.1 |
64.6 |
| Asus |
Silent Knight 2 |
high |
34.9 |
21.4 |
46.2 |
| Glacialtech |
Igloo 5610 Plus Silent |
|
36.1 |
20.9 |
38.0 |
| Akasa |
AK-960E |
|
36.1 |
21.4 |
56.3 |
| Gigabyte |
Volar GH-PSV21-FB |
high |
36.3 |
22.1 |
56.1 |
| Auras |
SMF-660 |
|
36.4 |
23.0 |
43.4 |
| Zalman |
CNPS7500-Cu LED |
high |
36.4 |
22.9 |
50.9 |
| Thermalfly |
I75DUH |
|
37.8 |
22.8 |
48.7 |
| Nexus |
VCT-9000 |
high |
38.4 |
24.4 |
42.9 |
| Akasa |
AK-975CU |
high |
38.4 |
23.0 |
47.7 |
| Cooljag |
OAK-H |
high |
38.5 |
22.9 |
55.7 |
| Cooljag |
OAK-H2 |
high |
38.6 |
24.1 |
55.6 |
| LS Cable |
SHS-T700 |
|
38.7 |
22.8 |
48.5 |
| 3Rsystem |
Iceage 80 Prima Mini |
|
38.8 |
24.5 |
35.4 |
| Thermaltake |
ISGC-100 |
high |
39.5 |
24.6 |
45.5 |
| Arctic Cooling |
Alpine 11 Pro |
high |
40.0 |
24.7 |
46.1 |
| nPowertek |
NPH-775-140HC |
high |
40.2 |
24.8 |
56.7 |
| Arctic Cooling |
Alpine 7 Pro |
high |
40.5 |
23.8 |
44.1 |
| Intel |
Stock Core 2 Duo E4400 |
|
41.5 |
25.2 |
41.6 |
| Intel |
Stock Core 2 Duo |
|
49.2 |
29.0 |
36.7 |
| Thermolab |
TLI-U Nano Silencer |
|
50.4 |
28.8 |
48.3 |
| Glacialtech |
Igloo 5062 Cu Light |
|
50.6 |
29.7 |
45.2 |
| Arctic Cooling |
Freezer 7LP |
high |
53.1 |
31.2 |
46.1 |
| Silverstone |
NT07-775 |
high |
55.2 |
32.9 |
36.5 |
| Glacialtech |
Igloo 5063 Light E |
|
56.5 |
32.1 |
51.5 |
| Glacialtech |
Igloo 5063 Cu Silent E |
|
57.3 |
34.4 |
41.0 |
| Glacialtech |
Igloo 5057 E |
|
58.5 |
36.1 |
53.4 |
| Asus |
Triton 75 |
|
58.6 |
16.1 |
49.6 |
| Spire |
Fourier IV SP607B3-C |
|
63.6 |
18.7 |
60.2 |
| Asus |
Triton 85 |
high |
71.5+ |
16.2 |
41.1 |
| Glacialtech |
Igloo 5058 Light E |
|
73.8 |
39.9 |
48.5 |
|
|
|
150w
thermal test (°c) |
85w
thermal test (°c) |
noise level (dba) |
| *heatsinks are ranked according to the 150w thermal
test results column (rise over ambient temp.). low temperatures with low
noise levels are considered best. for reference heatsinks with
variable speed fans, only the high speed (12v) fan test result is included
in the comparison sheet; more detailed results reside in each specific
heatsink review. |
the heat
output from intel processors varies, so frostytech tests with two thermal values
that represent the upper limits of existing cpu families. with a 150w heat load
applied by the intel lga775 version of
frostytech's synthetic thermal test platform first, the Zaward Vapor 120
heatsink maintained an excellent temperature of 15.6°C over ambient (51.6dBA
noise) at full fan speed.
The speed
of the 120mm PWM fan on the Zaward Vapor 120 was then reduced from 2000RPM to a
quiet 500RPM, decreasing noise levels to below 30 dBA. In this scenario the
Vapor 120 heatsink held temperatures at a steady 33.9°C over ambient. A large
increase in the copper CPU die temperature for certain, but not unsatisfactory
for CPU cooling.
The
Zaward Vapor 120 heatsink
was next tested on
the Frostytech Mrk.II synthetic thermal test platform with an 85W heat load;
akin to a Core 2 Duo or Core i5 processor. The integrated heatspreader on an
Intel Core i5 processor is the same size as the CPU test die used for the LGA775
synthetic thermal test platform, so the 85W result can be considered indicative
of LGA1156 heatsink performance qualities.
In this
test the Zaward Vapor 120 heatsink maintained a nice 9.7°C rise over ambient
temperature at default fan speed, and 20.1°C at its reduced fan speed.
The nice
thing about a heatsink like the Zaward Vapor 120 is that you get excellent
performance at stock fan speeds, without a big boxy heatsink footprint. This
tower cooler is based on a nearly identical framework as Xigmatek's HDT-S1283, and performs very similarly at
stock fan speeds too. The fin geometry is entirely different of course. The

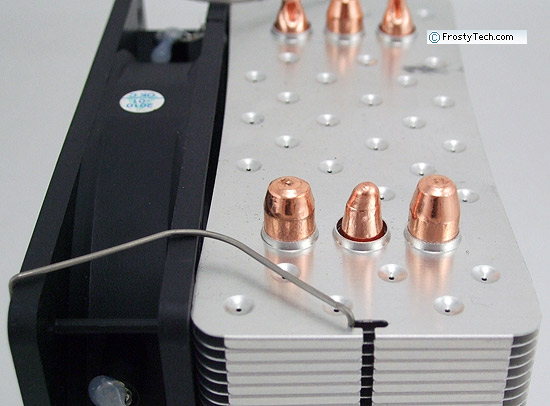

punctured dimples Zaward apply to every other fin is an interesting adaptation
that we'd like to see a few more heatsink manufacturers expand upon as well.
As a low
noise cooler the Vapor 120 heatsink works well, but it's not the strong point of
this cooler as the results clearly indicate. Bottom line, recommended for high performance cooling
at full fan speed.
Related Articles:
The Top 5 best heatsinks for low noise and low temperature
are ranked here. For more reviews on the latest heatsinks
and cooling solutions, rely on FrostyTech's inventory of 400+ heatsink
reviews. Here are a few other articles that you might enjoy as well.
- Dynatron Genius G950 Heatsink Review
- Gelid Tranquillo Heatsink Review
- Zalman CNPS10X Performa Heatsink Review
- Scythe Grand Kama Cross SCKC-2000 Heatsink Review
- Thermaltake SpinQ VT Heatsink Review
-
Zalman CNPS10X Quiet Heatsink Review
- CoolIT Domino ALC Liquid Cooling System Review
