FrostyTech Mk.II Synthetic Thermal
Heatsink Test Results
Intel
Pentium D / Extreme Edition & Quad Core class heatsinks tested
at 150W
Intel Core 2 Duo / Pentium 4 /
Celeron class heatsinks tested at 85W
Results based on readings from a 30x30mm copper
interface die with 150W and 85W heat loads applied on the LGA775
version of the Mk.II Test Platform. Temperature results listed for
each heatsink were calculated by determining the rise over ambient
temperatures at time of test. Information on Frostytech's test
methodology is available here. |
 |
| Socket 775 compatible CPU
heatsinks | |
| manufacturer: |
model
no.: |
fan
speed: |
150w
thermal test* (°c) |
85w
thermal test (°c) |
noise level (dba) |
|
| Tuniq |
Tower 120 Extreme |
high |
14.1 |
8.4 |
43.5 |
| Noctua |
NH-D14 |
high |
14.5 |
8.7 |
48.1 |
| Prolimatech |
Megahalems (80CFM) |
high |
15.0 |
9.2 |
53.0 |
| 3Rsystem |
iceage 120 Boss II |
high |
15.4 |
9.8 |
49.9 |
| Titan |
TTC-NK85TZ |
high |
15.5 |
8.8 |
58.6 |
| Thermolab |
BADA |
high |
16.0 |
9.6 |
54.0 |
| Sunbeamtech |
Core-Contact Freezer |
high |
16.1 |
10.0 |
51.3 |
| Zalman |
CNPS10X Quiet |
high |
16.5 |
10.4 |
46.8 |
| Zalman |
CNPS10X Flex (80CFM) |
|
16.5 |
10.6 |
51.2 |
| Zalman |
CNPS10X Performa |
high |
16.6 |
10.0 |
58.7 |
| Spire |
Thermax II (SP67951) |
high |
16.7 |
9.5 |
57.8 |
| Prolimatech |
Megahalems (50CFM) |
high |
16.8 |
10.2 |
45.1 |
| Xigmatek |
HDT-S1283 |
high |
16.8 |
10.7 |
50.7 |
| Coolermaster |
Hyper 212 Plus |
high |
16.9 |
10.9 |
50.1 |
| Kingwin |
XT-1264 |
high |
17.2 |
10.5 |
45.5 |
| Thermolab |
BARAM |
|
17.3 |
10.5 |
53.0 |
| Zalman |
CNPS10X Extreme |
high |
17.6 |
10.1 |
58.2 |
| Zalman |
CNPS10X Flex (50CFM) |
|
17.6 |
10.9 |
45.4 |
| CoolIT |
Domino ALC |
high |
17.8 |
10.6 |
60.2 |
| Thermalright |
Ultra 120 |
|
17.8 |
10.6 |
53.7 |
| Akasa |
Nero AK967 |
high |
17.9 |
10.8 |
39.3 |
| Xigmatek |
DK-S1283 |
high |
17.9 |
11.0 |
49.6 |
| Zerotherm |
Nirvana NV 120 PWM |
high |
18.0 |
11.0 |
44.9 |
| Ibuypower |
IBP-Z001 |
high |
18.0 |
11.6 |
61.7 |
| Coolermaster |
Hyper Z600 |
|
18.0 |
11.6 |
47.7 |
| DeepCool |
Killer Whale Premium |
high |
18.1 |
11.7 |
52.5 |
| Xigmatek |
HDT-S1284EE |
high |
18.1 |
9.4 |
44.2 |
| Zerotherm |
FZ120 |
high |
18.2 |
11.4 |
47.6 |
| 3Rsystem |
Iceage 120 |
high |
18.2 |
12.1 |
47.9 |
| Coolage |
X120TF |
|
18.3 |
11.0 |
53.0 |
| Vantec |
VAF-1225 Aeroflow FX 120 |
high |
18.3 |
11.8 |
54.2 |
| nPowerTek |
Hurricane NPH-105 (NB fan) |
high |
18.3 |
11.2 |
47.7 |
| Glacialtech |
F101 PWM |
high |
18.4 |
11.4 |
47.5 |
| Zerotherm |
Core 92 |
high |
18.4 |
11.5 |
53.4 |
| Coolermaster |
V8 |
high |
18.4 |
11.2 |
52.6 |
| Thermalright |
Ultra 120 Extreme |
|
18.4 |
11.4 |
44.5 |
| DeepCool |
Killer Whale |
high |
18.7 |
12.6 |
53.5 |
| XtremeGear |
HP-1216B |
high |
18.8 |
13.8 |
54.0 |
| Thermaltake |
BigTyp 14Pro |
high |
18.8 |
11.6 |
59.7 |
| Xigmatek |
HDT-SD964 |
high |
18.8 |
11.6 |
57.2 |
| SilenX |
iXtrema IXC-120HA2 |
high |
18.9 |
11.2 |
52.9 |
| Coolermaster |
Hyper 212 |
|
19.0 |
11.8 |
45.9 |
| Apack |
Zerotherm BTF92 OC Ed |
high |
19.0 |
11.2 |
53.6 |
| Zalman |
CNPS9700 LED |
high |
19.0 |
10.4 |
56.5 |
| Xigmatek |
HDT-S983 |
high |
19.5 |
11.8 |
52.7 |
| Scythe |
Mugen |
|
19.5 |
11.4 |
46.0 |
| Xigmatek |
S1284 Achilles |
high |
19.6 |
11.6 |
42.7 |
| Tuniq |
Tower 120 |
high |
19.6 |
12.2 |
51.6 |
| Thermalright |
Ultra-90 |
high |
19.6 |
13.0 |
56.2 |
| DeepCool |
Ice Blade Pro |
high |
19.8 |
13.1 |
46.1 |
| Apack |
Zerotherm Nirvana 120 |
high |
19.8 |
12.3 |
49.2 |
| Enzotech |
Ultra-X |
high |
20.0 |
8.5 |
59.1 |
| Scythe |
KAMA Angle |
high |
20.1 |
21.0 |
43.3 |
| Zalman |
CNPS9900 LED |
high |
20.2 |
13.3 |
57.5 |
| Zalman |
CNPS9700NT |
high |
20.3 |
12.4 |
52.2 |
| Scythe |
Infinity SCINF-1000 |
|
20.3 |
12.6 |
37.8 |
| Cooler Master |
Hyper Z600 Black Label |
high |
20.5 |
12.4 |
49.2 |
| OCZ |
Vendetta 2 |
high |
20.5 |
12.5 |
41.9 |
| Dynatron |
Genius |
high |
20.6 |
13.0 |
47.2 |
| Corsair |
Hydro H50 |
high |
20.7 |
13.7 |
45.6 |
| OCZ |
Gladiator Max |
high |
20.7 |
12.6 |
42.9 |
| EKL |
GroB Clock'ner |
|
20.8 |
13.2 |
40.6 |
| EKL |
GroB Clock'ner Blue Ed. |
high |
21.0 |
12.9 |
42.4 |
| Vantec |
VAF-9225 Aeroflow FX92 |
high |
21.2 |
14.0 |
57.9 |
| Noctua |
NH-C12P |
high |
21.2 |
13.1 |
40.4 |
| Coolermaster |
GeminII S |
high |
21.3 |
13.4 |
49.6 |
| OCZ |
Vendetta |
high |
21.3 |
13.5 |
52.8 |
| Noctua |
NH-U12P |
high |
21.3 |
13.4 |
40.7 |
| Thermaltake |

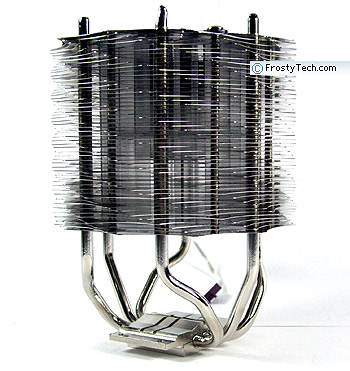

SpinQ VT |
high |
21.6 |
12.7 |
50.1 |
| Akasa |
Blue Aurora AK966BL |
high |
21.6 |
14.0 |
44.4 |
| Thermaltake |
ISGC-300 |
high |
21.7 |
12.9 |
44.0 |
| Xigmatek |
Thors Hammer S126384 |
|
21.8 |
13.2 |
46.4 |
| Apack |
Zerotherm BTF90 |
|
21.8 |
12.7 |
52.1 |
| Xigmatek |
HDT-S963 |
high |
21.9 |
13.7 |
50.2 |
| AVC |
Black Samurai |
high |
22.2 |
11.5 |
56.7 |
| Akasa |
AK-965 |
high |
22.2 |
13.8 |
48.1 |
| Gelid |
Tranquillo |
high |
22.4 |
13.9 |
41.3 |
| Coolermaster |
Hyper N520 |
|
22.4 |
14.1 |
49.0 |
| Scythe |
Grand Kama Cross |
high |
22.8 |
14.0 |
45.9 |
| Apack |
Zerotherm BTF80 |
|
22.8 |
13.9 |
51.9 |
| Thermaltake |
MaxOrb |
high |
22.9 |
13.1 |
57.4 |
| DeepCool |
IceWing 5 Pro |
high |
23.1 |
12.3 |
53.2 |
| Scythe |
Zipang 2 |
|
23.2 |
14.0 |
37.7 |
| Coolermaster |
Hyper TX3 |
high |
23.2 |
14.0 |
56.0 |
| Zalman |
CNPS8700 LED |
high |
23.2 |
14.1 |
48.1 |
| Cooljag |
Falcon 92-AL |
high |
23.2 |
14.2 |
52.1 |
| Rosewill |
RCX-Z3 |
high |
23.3 |
14.0 |
58.6 |
| Coolink |
Silentator |
high |
23.5 |
16.4 |
41.2 |
| Nexus |
HOC-9000 |
high |
23.6 |
14.6 |
43.0 |
| Scythe |
Mine Rev. B |
|
23.6 |
15.0 |
36.8 |
| Cooljag |
Falcon 92-Cu |
high |
23.6 |
14.8 |
52.8 |
| Thermaltake |
MaxOrb EX |
high |
24.0 |
13.9 |
56.5 |
| Thermaltake |
SpinQ VT |
low |
24.2 |
14.6 |
40.9 |
| nPowertek |
NPH-775-115HC |
|
24.2 |
15.3 |
55.0 |
| Akasa |
AK-920 |
high |
24.3 |
14.1 |
52.9 |
| Thermaltake |
V1 |
high |
24.4 |
12.3 |
59.6 |
| Intel |
FCLGA4-S Reference (P mode) |
high |
24.5 |
15.2 |
61.1 |
| Scythe |
Zipang |
|
24.7 |
15.2 |
33.1 |
| Evercool |
HPK-10025EA |
|
24.8 |
13.8 |
50.9 |
| Glacialtech |
Igloo 5750 PWM |
high |
24.9 |
14.6 |
52.3 |
| Asus |
Arctic Square |
high |
24.9 |
14.9 |
44.9 |
| Sunbeamtech |
Core-Contact Freezer 92mm Ed. |
high |
25.3 |
15.6 |
50.2 |
| AMA |
Serac 770 |
|
25.4 |
15.7 |
42.1 |
| Evercool |
HPJ-12025 Transformer 4 |
|
25.5 |
15.3 |
38.9 |
| Akasa |
AK-922 (EVObue) |
high |
25.5 |
15.4 |
60.3 |
| Thermaltake |
SpinQ |
high |
25.7 |
15.6 |
50.9 |
| Asus |
Lionsquare |
high |
25.7 |
15.3 |
44.7 |
| Coolermaster |
Aquagate Mini R80 |
high |
25.7 |
16.2 |
59.2 |
| Asus |
Silent Square EVO |
high |
25.8 |
15.6 |
42.8 |
| Glacialtech |
Igloo 5610 PWM |
high |
25.9 |
15.9 |
59.5 |
| Thermalright |
SI-128SE |
|
26.5 |
15.2 |
44.5 |
| Thermaltake |
DuOrb |
|
26.7 |
16.1 |
49.5 |
| Scythe |
Andy Samuri Master SCASM-1000 |
|
26.7 |
14.2 |
38.4 |
| Dynatron |
Evo-11 |
high |
26.8 |
16.4 |
54.1 |
| Titan |
Cool Idol TTC-NK75TZ |
high |
26.9 |
15.1 |
56.3 |
| Gelid |
Silent Spirit |
high |
27.0 |
17.1 |
48.5 |
| Zalman |
CNPS9300AT |
high |
27.1 |
18.2 |
55.5 |
| Noctua |
NH-U9B |
high |
27.1 |
17.2 |
41.9 |
| Thermaltake |
ISGC-400 |
high |
27.2 |
16.3 |
45.4 |
| Asus |
Triton 79 Amazing |
|
27.7 |
17.0 |
44.3 |
| ASUS |
Triton 77 |
high |
27.7 |
17.6 |
41.2 |
| Auras |
SLC-747 |
high |
27.9 |
25.7 |
52.2 |
| Thermaltake |
ISGC-200 |
high |
28.1 |
16.5 |
48.7 |
| Auras |
LPT-700 |
|
28.3 |
16.9 |
52.2 |
| Thermalfly |
F1-IACSHA |
high |
29.0 |
18.3 |
60.4 |
| Coolage |
Frozen Orb 2924HDC |
high |
29.2 |
18.7 |
56.0 |
| Evercool |
Transformer 6 |
high |
29.2 |
14.6 |
51.6 |
| Cooljag |
JYC 8A03A |
high |
29.3 |
19.8 |
50.6 |
| nPowertek |
TTIC NPH1000 |
|
29.3 |
16.8 |
47.5 |
| 3Rsystem |
Iceage 90 |
|
29.4 |
18.0 |
47.2 |
| Glacialtech |
Igloo 5710 Silent |
|
29.4 |
18.0 |
43.4 |
| Thermalfly |
I75DUB |
high |
29.5 |
16.8 |
68.5 |
| Zalman |
CNPS9500 AT |
|
29.6 |
17.3 |
53.3 |
| Glacialtech |
Igloo 5750 Silent |
|
29.8 |
18.5 |
35.5 |
| Coolermaster |
Hyper TX2 |
|
29.9 |
18.8 |
53.7 |
| Alpha Novatech |
PRE9060M92P |
high |
29.9 |
18.5 |
51.5 |
| Scythe |
Kama Cross |
|
30.0 |
18.8 |
40.0 |
| Akasa |
AK-961 |
|
30.0 |
18.7 |
60.7 |
| Auras |
LPT-709 |
|
30.1 |
18.6 |
43.9 |
| Rosewill |
RCX-Z2-EX |
high |
30.1 |
18.7 |
45.9 |
| nPowertek |
NPH-775-1 |
|
30.1 |
18.8 |
50.1 |
| Glacialtech |
Igloo 5710 Plus Silent |
|
30.2 |
18.5 |
39.3 |
| Glacialtech |
Igloo 5610 Silent |
|
30.4 |
17.1 |
44.7 |
| Sunon |
Waturbo |
|
30.6 |
18.3 |
57.5 |
| Auras |
CTC-868 (closed) |
|
31.0 |
18.6 |
48.7 |
| Akasa |
Revo (horizontal) |
high |
31.0 |
20.3 |
44.5 |
| Scythe |
Shuriken |
high |
31.4 |
18.8 |
38.2 |
| Apack |
CF800 |
high |
31.4 |
20.7 |
48.4 |
| Thermaltake |
Jungle512 |
high |
31.6 |
20.4 |
60.8 |
| Glacialtech |
UFO V51 Silent |
|
32.0 |
18.7 |
42.4 |
| Coolage |
Frozen Orb F0-Z924AL |
high |
32.0 |
19.9 |
48.9 |
| Xigmatek |
AIO-S80DP |
high |
32.4 |
21.4 |
55.0 |
| Scythe |
Katana II |
|
32.5 |
18.6 |
37.9 |
| Rosewill |
RCX-Z2 |
|
32.6 |
19.3 |
59.9 |
| Zalman |
CNPS7700-Cu |
high |
32.9 |
19.7 |
50.7 |
| Apack |
CF900 |
high |
32.9 |
20.3 |
48.3 |
| Evercool |
PT02-9232CP |
|
33.3 |
19.9 |
63.3 |
| Zalman |
CNPS7700-Cu LED |
high |
33.5 |
20.6 |
49.8 |
| Scythe |
Ninja Mini |
|
33.7 |
19.9 |
41.7 |
| Thermalright |
MST-977SLE |
|
33.8 |
20.0 |
46.5 |
| Intel |
Stock Pentium D |
high |
33.8 |
20.7 |
47.5 |
| Scythe |
Orochi SCORC-1000 |
|
34.0 |
20.8 |
27.8 |
| Zaward |
Gyre ZCJ010 |
high |
34.4 |
21.3 |
52.7 |
| Scythe |
Big Shuriken |
high |
34.6 |
22.1 |
39.6 |
| Thermolab |
TLI-S Micro Silencer |
|
34.7 |
19.2 |
52.0 |
| nPowerTek |
SF775-2 |
high |
34.7 |
21.1 |
64.6 |
| Asus |
Silent Knight 2 |
high |
34.9 |
21.4 |
46.2 |
| Glacialtech |
Igloo 5610 Plus Silent |
|
36.1 |
20.9 |
38.0 |
| Akasa |
AK-960E |
|
36.1 |
21.4 |
56.3 |
| Gigabyte |
Volar GH-PSV21-FB |
high |
36.3 |
22.1 |
56.1 |
| Auras |
SMF-660 |
|
36.4 |
23.0 |
43.4 |
| Zalman |
CNPS7500-Cu LED |
high |
36.4 |
22.9 |
50.9 |
| Thermalfly |
I75DUH |
|
37.8 |
22.8 |
48.7 |
| Akasa |
AK-975CU |
high |
38.4 |
23.0 |
47.7 |
| Cooljag |
OAK-H |
high |
38.5 |
22.9 |
55.7 |
| Cooljag |
OAK-H2 |
high |
38.6 |
24.1 |
55.6 |
| LS Cable |
SHS-T700 |
|
38.7 |
22.8 |
48.5 |
| 3Rsystem |
Iceage 80 Prima Mini |
|
38.8 |
24.5 |
35.4 |
| Thermaltake |
ISGC-100 |
high |
39.5 |
24.6 |
45.5 |
| Arctic Cooling |
Alpine 11 Pro |
high |
40.0 |
24.7 |
46.1 |
| nPowertek |
NPH-775-140HC |
high |
40.2 |
24.8 |
56.7 |
| Arctic Cooling |
Alpine 7 Pro |
high |
40.5 |
23.8 |
44.1 |
| Intel |
Stock Core 2 Duo E4400 |
|
41.5 |
25.2 |
41.6 |
| Intel |
Stock Core 2 Duo |
|
49.2 |
29.0 |
36.7 |
| Thermolab |
TLI-U Nano Silencer |
|
50.4 |
28.8 |
48.3 |
| Glacialtech |
Igloo 5062 Cu Light |
|
50.6 |
29.7 |
45.2 |
| Arctic Cooling |
Freezer 7LP |
high |
53.1 |
31.2 |
46.1 |
| Silverstone |
NT07-775 |
high |
55.2 |
32.9 |
36.5 |
| Glacialtech |
Igloo 5063 Light E |
|
56.5 |
32.1 |
51.5 |
| Glacialtech |
Igloo 5063 Cu Silent E |
|
57.3 |
34.4 |
41.0 |
| Glacialtech |
Igloo 5057 E |
|
58.5 |
36.1 |
53.4 |
| Asus |
Triton 75 |
|
58.6 |
16.1 |
49.6 |
| Spire |
Fourier IV SP607B3-C |
|
63.6 |
18.7 |
60.2 |
| Asus |
Triton 85 |
high |
71.5+ |
16.2 |
41.1 |
| Glacialtech |
Igloo 5058 Light E |
|
73.8 |
39.9 |
48.5 |
|
|
|
150w
thermal test (°c) |
85w
thermal test (°c) |
noise level (dba) |
| *heatsinks are ranked according to the 150w thermal
test results column (rise over ambient temp.). low temperatures with low
noise levels are considered best. for reference heatsinks with
variable-speed fans, only the high speed (12v) fan test result is included
in the comparison sheet; more detailed results reside in each specific
heatsink review. |
Frostytech tests with two thermal values that represent the
upper limits of existing Intel CPU families. With a 150W heat load applied by
the Intel LGA775 version of FrostyTech's synthetic thermal test platform first,
the Thermaltake SpinQ VT heatsink maintains a very good temperature of 21.6°C
over ambient (50.1dBA noise) at full fan speed.
Under the
same 150W heat load but reduced fan speed, the noise output from the SpinQ VT
heatsink levels off too 40.9dBA while temperatures rise modestly
to 24.2°C.
Thermaltake's SpinQ VT heatsink was then tested
with an 85W heat load; akin to a Core 2 Duo processor. In this test the SpinQ VT
easily maintained a temperature of 12.7°C over ambient at 1600RPM, and 14.6°C
with the fan at 1000RPM.
Ultimately, while the Thermaltake SpinQ VT heatsink is a good heatsink and a
nice improvement over the original SpinQ, it still doesn't stand out from
the crowd or dominate in thermal performance or low noise operation.
Given that Thermaltake is one of the most widely
recognized heatsink brands in PC shops, it might be time for the company to
focus more on raw performance than just cranking out just another
economical, but average performing, visually appealing product....
When it comes to CPU cooling, appearance is nothing in
the grand scheme of things.
Related Articles:
The Top 5 best heatsinks for low noise and low temperature
are ranked here. For more reviews on the latest heatsinks
and cooling solutions, rely on FrostyTech's inventory of 400+ heatsink
reviews. Here are a few other articles that you might enjoy as well.
- https://www.frostytech.com/articleview.cfm?articleid=2346
- Cooler Master Hyper Z600 Black Label Heatsink Review
- Zalman CNPS9900 LED Intel Core i7 Compatible Heatsink
Review
- Gelid Solutions Silent Spirit Heatsink Review
- Akasa Nero AK-967 Heatsink Review
- AVC Black Samurai Heatsink Review
- Cooler Master Hyper Z600 Black Label Heatsink Review
- Xigmatek Dark Knight S1283 Heatsink Review
