FrostyTech Mk.II Synthetic Thermal
Heatsink Test Results
Intel
Pentium D / Extreme Edition & Quad Core class heatsinks tested
at 150W
Intel Core 2 Duo / Pentium 4 /
Celeron class heatsinks tested at 85W
Results based on readings from a 30x30mm copper
interface die with 150W and 85W heat loads applied on the LGA775
version of the Mk.II Test Platform. Temperature results listed for
each heatsink were calculated by determining the rise over ambient
temperatures at time of test. Information on Frostytech's test
methodology is available here. |
 |
| Socket 775 compatible CPU
heatsinks | |
| manufacturer: |
model
no.: |
fan
speed: |
150w
thermal test* (°c) |
85w
thermal test (°c) |
noise level (dba) |
|
| Sunbeamtech |
Core-Contact Freezer |
high |
16.1 |
10.0 |
51.3 |
| Xigmatek |
HDT-S1283 |
high |
16.8 |
10.7 |
50.7 |
| Thermalright |
Ultra 120 |
|
17.8 |
10.6 |
53.7 |
| Xigmatek |
DK-S1283 |
high |
17.9 |
11.0 |
49.6 |
| Ibuypower |
IBP-Z001 |
high |
18.0 |
11.6 |
61.7 |
| Coolermaster |
Hyper Z600 |
|
18.0 |
11.6 |
47.7 |
| Xigmatek |
HDT-S1284EE |
high |
18.1 |
9.4 |
44.2 |
| Zerotherm |
FZ120 |
high |
18.2 |
11.4 |
47.6 |
| 3Rsystem |
Iceage 120 |
high |
18.2 |
12.1 |
47.9 |
| Vantec |
VAF-1225 Aeroflow FX 120 |
high |
18.3 |
11.8 |
54.2 |
| Coolermaster |
V8 |
high |
18.4 |
11.2 |
52.6 |
| Thermalright |
Ultra 120 Extreme |
|
18.4 |
11.4 |
44.5 |
| Xigmatek |
HDT-SD964 |
high |
18.8 |
11.6 |
57.2 |
| SilenX |
iXtrema IXC-120HA2 |
high |
18.9 |
11.2 |
52.9 |
| Coolermaster |
Hyper 212 |
|
19.0 |
11.8 |
45.9 |
| Apack |
Zerotherm BTF92 OC Ed |
high |
19.0 |
11.2 |
53.6 |
| Zalman |
CNPS9700 LED |
high |
19.0 |
10.4 |
56.5 |
| Xigmatek |
HDT-S983 |
high |
19.5 |
11.8 |
52.7 |
| Scythe |
Mugen |
|
19.5 |
11.4 |
46.0 |
| Xigmatek |
S1284 Achilles |
high |
19.6 |
11.6 |
42.7 |
| Tuniq |
Tower 120 |
high |
19.6 |
12.2 |
51.6 |
| Thermalright |
Ultra-90 |
high |
19.6 |
13.0 |
56.2 |
| Apack |
Zerotherm Nirvana 120 |
high |
19.8 |
12.3 |
49.2 |
| Enzotech |
Ultra-X |
high |
20.0 |
8.5 |
59.1 |
| Zalman |
CNPS9700NT |
high |
20.3 |
12.4 |
52.2 |
| Scythe |
Infinity SCINF-1000 |
|
20.3 |
12.6 |
37.8 |
| OCZ |
Vendetta 2 |
high |
20.5 |
12.5 |
41.9 |
| OCZ |
Gladiator Max |
high |
20.7 |
12.6 |
42.9 |
| EKL |
GroB Clock'ner |
|
20.8 |
13.2 |
40.6 |
| EKL |
GroB Clock'ner Blue Ed. |
high |
21.0 |
12.9 |
42.4 |
| Vantec |
VAF-9225 Aeroflow FX92 |
high |
21.2 |
14.0 |
57.9 |
| Noctua |
NH-C12P |
high |
21.2 |
13.1 |
40.4 |
| Coolermaster |
GeminII S |
high |
21.3 |
13.4 |
49.6 |
| OCZ |
Vendetta |
high |
21.3 |
13.5 |
52.8 |
| Noctua |
NH-U12P |
high |
21.3 |
13.4 |
40.7 |
| Apack |
Zerotherm BTF90 |
|
21.8 |
12.7 |
52.1 |
| Xigmatek |
HDT-S963 |
high |
21.9 |
13.7 |
50.2 |
| Akasa |
AK-965 |
high |
22.2 |
13.8 |
48.1 |
| Apack |
Zerotherm BTF80 |
|
22.8 |
13.9 |
51.9 |
| Thermaltake |
MaxOrb |
high |
22.9 |
13.1 |
57.4 |
| Zalman |
CNPS8700 LED |
high |
23.2 |
14.1 |
48.1 |
| Cooljag |
Falcon 92-AL |
high |
23.2 |
14.2 |
52.1 |
| Rosewill |
RCX-Z3 |
high |
23.3 |
14.0 |
58.6 |
| Coolink |
Silentator |
high |
23.5 |
16.4 |
41.2 |
| Nexus |
HOC-9000 |
high |
23.6 |
14.6 |
43.0 |
| Scythe |
Mine Rev. B |
|
23.6 |
15.0 |
36.8 |
| Cooljag |
Falcon 92-Cu |
high |
23.6 |
14.8 |
52.8 |
| Thermaltake |
MaxOrb EX |
high |
24.0 |
13.9 |
56.5 |
| nPowertek |
NPH-775-115HC |
|
24.2 |
15.3 |
55.0 |
| Akasa |
AK-920 |
high |
24.3 |
14.1 |
52.9 |
| Thermaltake |
V1 |
high |
24.4 |
12.3 |
59.6 |
| Intel |
FCLGA4-S Reference (P mode) |
high |
24.5 |
15.2 |
61.1 |
| Scythe |
Zipang |
|
24.7 |
15.2 |
33.1 |
| Glacialtech |
Igloo 5750 PWM |
high |
24.9 |
14.6 |
52.3 |
| Asus |
Arctic Square |
high |
24.9 |
14.9 |
44.9 |
| AMA |
Serac 770 |
|
25.4 |
15.7 |
42.1 |
| Akasa |
AK-922 (EVObue) |
high |
25.5 |
15.4 |
60.3 |
| Asus |
Lionsquare |
high |
25.7 |
15.3 |
44.7 |
| Coolermaster |
Aquagate Mini R80 |
high |
25.7 |
16.2 |
59.2 |
| Asus |
Silent Square EVO |
high |
25.8 |
15.6 |
42.8 |
| Glacialtech |
Igloo 5610 PWM |
high |
25.9 |
15.9 |
59.5 |
| Thermalright |
SI-128SE |
|
26.5 |
15.2 |
44.5 |
| Thermaltake |
DuOrb |
|
26.7 |
16.1 |
49.5 |
| Scythe |
Andy Samuri Master SCASM-1000 |
|
26.7 |
14.2 |
38.4 |
| Titan |
Cool Idol TTC-NK75TZ |
high |
26.9 |
15.1 |
56.3 |
| Gelid |
Silent Spirit |
high |
27.0 |
17.1 |
48.5 |
| Zalman |
CNPS9300AT |
high |
27.1 |
18.2 |
55.5 |
| Noctua |
NH-U9B |
high |
27.1 |
17.2 |
41.9 |
| Asus |
Triton 79 Amazing |
|
27.7 |
17.0 |
44.3 |
| ASUS |
Triton 77 |
high |
27.7 |
17.6 |
41.2 |
| Auras |
SLC-747 |
high |
27.9 |
25.7 |
52.2 |
| Auras |
LPT-700 |
|
28.3 |
16.9 |
52.2 |
| Thermalfly |
F1-IACSHA |
high |
29.0 |
18.3 |
60.4 |
| Evercool |
Transformer 6 |
high |
29.2 |
14.6 |
51.6 |
| nPowertek |
TTIC NPH1000 |
|
29.3 |
16.8 |
47.5 |
| Glacialtech |
Igloo 5710 Silent |
|
29.4 |
18.0 |
43.4 |
| Thermalfly |
I75DUB |
high |
29.5 |
16.8 |
68.5 |
| Zalman |
CNPS9500 AT |
|
29.6 |
17.3 |
53.3 |
| Glacialtech |
Igloo 5750 Silent |
|
29.8 |
18.5 |
35.5 |
| Coolermaster |
Hyper TX2 |
|
29.9 |
18.8 |
53.7 |
| Alpha Novatech |
PRE9060M92P |
high |
29.9 |
18.5 |
51.5 |
| Scythe |
Kama Cross |
|
30.0 |
18.8 |
40.0 |
| Akasa |
AK-961 |
|
30.0 |
18.7 |
60.7 |
| Auras |
LPT-709 |
|
30.1 |
18.6 |
43.9 |
| Rosewill |
RCX-Z2-EX |
high |
30.1 |
18.7 |
45.9 |
| nPowertek |
NPH-775-1 |
|
30.1 |
18.8 |
50.1 |
| Glacialtech |
Igloo 5610 Silent |
|
30.4 |
17.1 |
44.7 |
| Sunon |
Waturbo |
|
30.6 |
18.3 |
57.5 |
| Auras |
CTC-868 (closed) |
|
31.0 |
18.6 |
48.7 |
| Akasa |
Revo (horizontal) |
high |
31.0 |
20.3 |
44.5 |
| Scythe |
Shuriken |
high |
31.4 |
18.8 |
38.2 |
| Apack |
CF800 |
high |
31.4 |
20.7 |
48.4 |
| Thermaltake |
Jungle512 |
high |
31.6 |
20.4 |
60.8 |
| Coolage |
Frozen Orb F0-Z924AL |
high |
32.0 |
19.9 |
48.9 |
| Xigmatek |
AIO-S80DP |
high |
32.4 |
21.4 |
55.0 |
| Scythe |
Katana II |
|
32.5 |
18.6 |
37.9 |
| Rosewill |
RCX-Z2 |
|
32.6 |
19.3 |
59.9 |
| Zalman |
CNPS7700-Cu |
high |
32.9 |
19.7 |
50.7 |
| Apack |
CF900 |
high |
32.9 |
20.3 |
48.3 |
| Evercool |
PT02-9232CP |
|
33.3 |
19.9 |
63.3 |
| Zalman |
CNPS7700-Cu LED |
high |
33.5 |
20.6 |
49.8 |
| Scythe |
Ninja Mini |
|
33.7 |
19.9 |
41.7 |
| Thermalright |
MST-977SLE |
|
33.8 |
20.0 |
46.5 |
| Intel |
Stock Pentium D |
high |
33.8 |
20.7 |
47.5 |
| Scythe |
Orochi SCORC-1000 |
|
34.0 |
20.8 |
27.8 |
| Thermolab |
TLI-S Micro Silencer |
|
34.7 |
19.2 |
52.0 |
| nPowerTek |
SF775-2 |
high |
34.7 |
21.1 |
64.6 |
| Asus |
Silent Knight 2 |
high |
34.9 |
21.4 |
46.2 |
| Akasa |
AK-960E |
|
36.1 |
21.4 |
56.3 |
| Gigabyte |
Volar GH-PSV21-FB |
high |
36.3 |
22.1 |
56.1 |
| Auras |
SMF-660 |
|
36.4 |
23.0 |
43.4 |
| Zalman |
CNPS7500-Cu LED |
high |
36.4 |
22.9 |
50.9 |
| Thermalfly |
I75DUH |
|
37.8 |
22.8 |
48.7 |
| Akasa |
AK-975CU |
high |
38.4 |
23.0 |
47.7 |
| Cooljag |
OAK-H |
high |
38.5 |
22.9 |
55.7 |
| Cooljag |
OAK-H2 |
high |
38.6 |
24.1 |
55.6 |
| LS Cable |
SHS-T700 |
|
38.7 |
22.8 |
48.5 |
| nPowertek |
NPH-775-140HC |
high |
40.2 |
24.8 |
56.7 |
| Arctic Cooling |
Alpine 7 Pro |
high |
40.5 |
23.8 |
44.1 |
| Titan |
Cool Idol TTC-NK75TZ |
low |
41.5 |
21.3 |
37.3 |
| Intel |
Stock Core 2 Duo |
|
49.2 |
29.0 |
36.7 |
| Thermolab |
TLI-U Nano Silencer |
|
50.4 |
28.8 |
48.3 |
| Glacialtech |
Igloo 5062 Cu Light |
|
50.6 |
29.7 |
45.2 |
| Glacialtech |
Igloo 5063 Light E |
|
56.5 |
32.1 |
51.5 |
| Glacialtech |
Igloo 5063 Cu Silent E |
|
57.3 |
34.4 |
41.0 |
| Glacialtech |
Igloo 5057 E |
|
58.5 |
36.1 |
53.4 |
| Asus |
Triton 75 |
|
58.6 |
16.1 |
49.6 |
| Spire |
Fourier IV SP607B3-C |
|
63.6 |
18.7 |
60.2 |
| Asus |
Triton 85 |
high |
71.5+ |
16.2 |
41.1 |
| Glacialtech |
Igloo 5058 Light E |
|
73.8 |
39.9 |
48.5 |
|
|
|
150w
thermal test (°c) |
85w
thermal test (°c) |
noise level (dba) |
| *heatsinks are ranked according to the 150w thermal
test results column (rise over ambient temp.). low temperatures with low
noise levels are considered best. for reference heatsinks with
variable-speed fans, only the high speed (12v) fan test result is included
in the comparison sheet; more detailed results reside in each specific
heatsink review. |
intel
processors vary in power output between single and multi-core models, so
frostytech tests heatsinks with two thermal loads that represent the upper limit
of each cpu family; 150w and 85w.
With a 150W heat load applied by the
Intel LGA775 version of FrostyTech's
synthetic thermal test platform, the Titan Cool Idol heatsink maintains an
average temperature of 26.9°C over ambient at stock fan speed (56.3dBA noise).
If the 120mm fan is slowed to 800RPM, the Titan Cool Idol yields a satisfactory
result of 41.5°C over ambient (37.3 dBA).
The Titan
Cool Idol heatsink was next tested with an 85W heat load. Under these test
conditions the heatsink maintained a 15.1°C rise over ambient at stock fan
speed, 21.3°C at reduced fan speed.

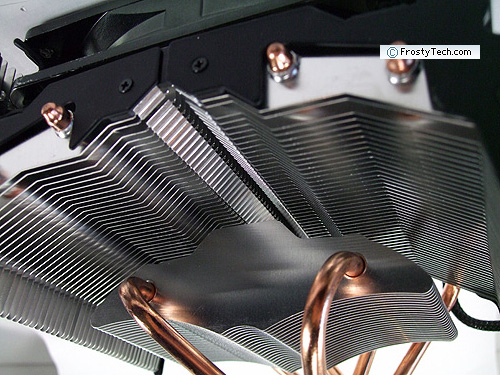

Given the complexity of the Titan Cool Idol's design,
the number of heatpipes utilized and the sheer mass of fins overhanging the CPU,
the results are somewhat underwhelming. At full fan speed the heatsink is
clearly capable of tackling a 150W Intel processor, though the Cool Idol handles
a little better on the AMD platform. In each instance, the Titan Cool Idol still
found itself near the middle of the pack in the reference charts.
Low noise cooling is the aim of all heatsinks being
produced right now, and quietly cooling to a low temperature is still very much
an art and science. The Titan Cool Idol heatsink will run near whisper quiet,
but the thermal results are average on the AMD platform and only satisfactory
for Intel CPUs.
The arrangement of heatpipes on the Titan Cool Idol
heatsink creates a very unstable frame which is prone to bending. The upper
portion of the heatsink lacks sufficient support fro the weight involved, and
the heatpipes directly above the CPU core are routed to the smallest cooling fin
section. With some moderate design revisions the Titan Cool Idol could solve its
fragility issues, and potentially improve thermal performance. In any event, as
it stands the Titan Cool Idol heatsink will get you there but there with its fan
running at full speed, but there are more compact, quieter and cooler heatsinks
on the market place to pick from.
Related Articles:
The Top 5 best heatsinks for low noise and low temperature
are ranked here. For more reviews on the latest heatsinks
and cooling solutions, rely on FrostyTech's inventory of 400+ heatsink
reviews. Here are a few other articles that you might enjoy as well.
- Coolermaster V8 Heatsink Review
- Noctua NH-C12P Heatsink Review
- OCZ Gladiator MAX Heatsink Review
- Nexus HOC-9000 Heatpipe On CPU Heatsink Review
- Ibuypower IBP-Z001 Liquid Cooling System Review
- EKL Alphenfohn GroB Clock ner Heatsink Review
- Xigmatek Achilles S1284 Exposed Heatpipe Base Heatsink Review
