FrostyTech Mk.II Synthetic Thermal
Heatsink Test Results
Intel
Pentium D / Extreme Edition & Quad Core class heatsinks tested
at 150W
Intel Core 2 Duo / Pentium 4 /
Celeron class heatsinks tested at 85W
Results based on readings from a 30x30mm copper
interface die with 150W and 85W heat loads applied on the LGA775
version of the Mk.II Test Platform. Temperature results listed for
each heatsink were calculated by determining the rise over ambient
temperatures at time of test. Information on Frostytech's test
methodology is available here. |
 |
| Socket 775 compatible CPU
heatsinks | |
| manufacturer: |
model
no.: |
fan
speed: |
150w
thermal test* (°c) |
85w
thermal test (°c) |
noise level (dba) |
|
| Sunbeamtech |
Core-Contact Freezer |
high |
16.1 |
10.0 |
51.3 |
| Xigmatek |
HDT-S1283 |
high |
16.8 |
10.7 |
50.7 |
| Thermalright |
Ultra 120 |
|
17.8 |
10.6 |
53.7 |
| Ibuypower |
IBP-Z001 |
high |
18.0 |
11.6 |
61.7 |
| Coolermaster |
Hyper Z600 |
|
18.0 |
11.6 |
47.7 |
| Xigmatek |
HDT-S1284EE |
high |
18.1 |
9.4 |
44.2 |
| Zerotherm |
FZ120 |
high |
18.2 |
11.4 |
47.6 |
| 3Rsystem |
Iceage 120 |
high |
18.2 |
12.1 |
47.9 |
| Thermalright |
Ultra 120 Extreme |
|
18.4 |
11.4 |
44.5 |
| Xigmatek |
HDT-SD964 |
high |
18.8 |
11.6 |
57.2 |
| SilenX |
iXtrema IXC-120HA2 |
high |
18.9 |
11.2 |
52.9 |
| Coolermaster |
Hyper 212 |
|
19.0 |
11.8 |
45.9 |
| Apack |
Zerotherm BTF92 OC Ed |
high |
19.0 |
11.2 |
53.6 |
| Zalman |
CNPS9700 LED |
high |
19.0 |
10.4 |
56.5 |
| Xigmatek |
HDT-S983 |
high |
19.5 |
11.8 |
52.7 |
| Scythe |
Mugen |
|
19.5 |
11.4 |
46.0 |
| Xigmatek |
S1284 Achilles |
high |
19.6 |
11.6 |
42.7 |
| Tuniq |
Tower 120 |
high |
19.6 |
12.2 |
51.6 |
| Thermalright |
Ultra-90 |
high |
19.6 |
13.0 |
56.2 |
| Apack |
Zerotherm Nirvana 120 |
high |
19.8 |
12.3 |
49.2 |
| Enzotech |
Ultra-X |
high |
20.0 |
8.5 |
59.1 |
| Zalman |
CNPS9700NT |
high |
20.3 |
12.4 |
52.2 |
| Scythe |
Infinity SCINF-1000 |
|
20.3 |
12.6 |
37.8 |
| OCZ |
Vendetta 2 |
high |
20.5 |
12.5 |
41.9 |
| Noctua |
NH-C12P |
high |
21.2 |
13.1 |
40.4 |
| Coolermaster |
GeminII S |
high |
21.3 |
13.4 |
49.6 |
| OCZ |
Vendetta |
high |
21.3 |
13.5 |
52.8 |
| Noctua |
NH-U12P |
high |
21.3 |
13.4 |
40.7 |
| Apack |
Zerotherm BTF90 |
|
21.8 |
12.7 |
52.1 |
| Xigmatek |
HDT-S963 |
high |
21.9 |
13.7 |
50.2 |
| Akasa |
AK-965 |
high |
22.2 |
13.8 |
48.1 |
| Apack |
Zerotherm BTF80 |
|
22.8 |
13.9 |
51.9 |
| Thermaltake |
MaxOrb |
high |
22.9 |
13.1 |
57.4 |
| Zalman |
CNPS8700 LED |
high |
23.2 |
14.1 |
48.1 |
| Cooljag |
Falcon 92-AL |
high |
23.2 |
14.2 |
52.1 |
| Rosewill |
RCX-Z3 |
high |
23.3 |
14.0 |
58.6 |
| Coolink |
Silentator |
high |
23.5 |
16.4 |
41.2 |
| Nexus |
HOC-9000 |
high |
23.6 |
14.6 |
43.0 |
| Scythe |
Mine Rev. B |
|
23.6 |
15.0 |
36.8 |
| Cooljag |
Falcon 92-Cu |
high |
23.6 |
14.8 |
52.8 |
| Akasa |
AK-920 |
high |
24.3 |
14.1 |
52.9 |
| Thermaltake |
V1 |
high |
24.4 |
12.3 |
59.6 |
| Intel |
FCLGA4-S Reference (P mode) |
high |
24.5 |
15.2 |
61.1 |
| Scythe |
Zipang |
|
24.7 |
15.2 |
33.1 |
| Glacialtech |
Igloo 5750 PWM |
high |
24.9 |
14.6 |
52.3 |
| Asus |
Arctic Square |
high |
24.9 |
14.9 |
44.9 |
| Akasa |
AK-922 (EVObue) |
high |
25.5 |
15.4 |
60.3 |
| Asus |
Lionsquare |
high |
25.7 |
15.3 |
44.7 |
| Coolermaster |
Aquagate Mini R80 |
high |
25.7 |
16.2 |
59.2 |
| Asus |
Silent Square EVO |
high |
25.8 |
15.6 |
42.8 |
| Glacialtech |
Igloo 5610 PWM |
high |
25.9 |
15.9 |
59.5 |
| Thermalright |
SI-128SE |
|
26.5 |
15.2 |
44.5 |
| Thermaltake |
DuOrb |
|
26.7 |
16.1 |
49.5 |
| Scythe |
Andy Samuri Master SCASM-1000 |
|
26.7 |
14.2 |
38.4 |
| Zalman |
CNPS9300AT |
high |
27.1 |
18.2 |
55.5 |
| Noctua |
NH-U9B |
high |
27.1 |
17.2 |
41.9 |
| Asus |
Triton 79 Amazing |
|
27.7 |
17.0 |
44.3 |
| ASUS |
Triton 77 |
high |
27.7 |
17.6 |
41.2 |
| Auras |
SLC-747 |
high |
27.9 |
25.7 |
52.2 |
| Auras |
LPT-700 |
|
28.3 |
16.9 |
52.2 |
| Thermalfly |
F1-IACSHA |
high |
29.0 |
18.3 |
60.4 |
| nPowertek |
TTIC NPH1000 |
|
29.3 |
16.8 |
47.5 |
| Glacialtech |
Igloo 5710 Silent |
|
29.4 |
18.0 |
43.4 |
| Thermalfly |
I75DUB |
high |
29.5 |
16.8 |
68.5 |
| Zalman |
CNPS9500 AT |
|
29.6 |
17.3 |
53.3 |
| Glacialtech |
Igloo 5750 Silent |
|
29.8 |
18.5 |
35.5 |
| Coolermaster |
Hyper TX2 |
|
29.9 |
18.8 |
53.7 |
| Alpha Novatech |
PRE9060M92P |
high |
29.9 |
18.5 |
51.5 |
| Scythe |
Kama Cross |
|
30.0 |
18.8 |
40.0 |
| Akasa |
AK-961 |
|
30.0 |
18.7 |
60.7 |
| Auras |
LPT-709 |
|
30.1 |
18.6 |
43.9 |
| Rosewill |
RCX-Z2-EX |
high |
30.1 |
18.7 |
45.9 |
| nPowertek |
NPH-775-1 |
|
30.1 |
18.8 |
50.1 |
| Glacialtech |
Igloo 5610 Silent |
|
30.4 |
17.1 |
44.7 |
| Sunon |
Waturbo |
|
30.6 |
18.3 |
57.5 |
| Auras |
CTC-868 (closed) |
|
31.0 |
18.6 |
48.7 |
| Akasa |
Revo (horizontal) |
high |
31.0 |
20.3 |
44.5 |
| Scythe |
Shuriken |
high |
31.4 |
18.8 |
38.2 |
| Apack |
CF800 |
high |
31.4 |
20.7 |
48.4 |
| Thermaltake |
Jungle512 |
high |
31.6 |
20.4 |
60.8 |
| Coolage |
Frozen Orb F0-Z924AL |
high |
32.0 |
19.9 |
48.9 |
| Xigmatek |
AIO-S80DP |
high |
32.4 |
21.4 |
55.0 |
| Scythe |
Katana II |
|
32.5 |
18.6 |
37.9 |
| Rosewill |
RCX-Z2 |
|
32.6 |
19.3 |
59.9 |
| Zalman |
CNPS7700-Cu |
high |
32.9 |
19.7 |
50.7 |
| Apack |
CF900 |
high |
32.9 |
20.3 |
48.3 |
| Evercool |
PT02-9232CP |
|
33.3 |
19.9 |
63.3 |
| Zalman |
CNPS7700-Cu LED |
high |
33.5 |
20.6 |
49.8 |
| Scythe |
Ninja Mini |
|
33.7 |
19.9 |
41.7 |
| Thermalright |
MST-977SLE |
|
33.8 |
20.0 |
46.5 |
| Intel |
Stock Pentium D |
high |
33.8 |
20.7 |
47.5 |
| Scythe |
Orochi SCORC-1000 |
|
34.0 |
20.8 |
27.8 |
| Thermolab |
TLI-S Micro Silencer |
|
34.7 |
19.2 |
52.0 |
| nPowerTek |
SF775-2 |
high |
34.7 |
21.1 |
64.6 |
| Asus |
Silent Knight 2 |
high |
34.9 |
21.4 |
46.2 |
| Akasa |
AK-960E |
|
36.1 |
21.4 |
56.3 |
| Gigabyte |
Volar GH-PSV21-FB |
high |
36.3 |
22.1 |
56.1 |
| Auras |
SMF-660 |
|
36.4 |
23.0 |
43.4 |
| Zalman |
CNPS7500-Cu LED |
high |
36.4 |
22.9 |
50.9 |
| Thermalfly |
I75DUH |
|
37.8 |
22.8 |
48.7 |
| Akasa |
AK-975CU |
high |
38.4 |
23.0 |
47.7 |
| Cooljag |
OAK-H |
high |
38.5 |
22.9 |
55.7 |
| Cooljag |
OAK-H2 |
high |
38.6 |
24.1 |
55.6 |
| LS Cable |
SHS-T700 |
|
38.7 |
22.8 |
48.5 |
| nPowertek |
NPH-775-140HC |
high |
40.2 |
24.8 |
56.7 |
| Arctic Cooling |
Alpine 7 Pro |
high |
40.5 |
23.8 |
44.1 |
| Intel |
Stock Core 2 Duo |
|
49.2 |
29.0 |
36.7 |
| Thermolab |
TLI-U Nano Silencer |
|
50.4 |
28.8 |
48.3 |
| Glacialtech |
Igloo 5062 Cu Light |
|
50.6 |
29.7 |
45.2 |
| Glacialtech |
Igloo 5063 Light E |
|
56.5 |
32.1 |
51.5 |
| Glacialtech |
Igloo 5063 Cu Silent E |
|
57.3 |
34.4 |
41.0 |
| Glacialtech |
Igloo 5057 E |
|
58.5 |
36.1 |
53.4 |
| Asus |
Triton 75 |
|
58.6 |
16.1 |
49.6 |
| Spire |
Fourier IV SP607B3-C |
|
63.6 |
18.7 |
60.2 |
| Asus |
Triton 85 |
high |
71.5+ |
16.2 |
41.1 |
| Asus |
Triton 85 |
low |
71.5+ |
21.2 |
31.8 |
| Glacialtech |
Igloo 5058 Light E |
|
73.8 |
39.9 |
48.5 |
|
|
|
150w
thermal test (°c) |
85w
thermal test (°c) |
noise level (dba) |
| *heatsinks are ranked according to the 150w thermal
test results column (rise over ambient temp.). low temperatures with low
noise levels are considered best. for reference heatsinks with
variable-speed fans, only the high speed (12v) fan test result is included
in the comparison sheet; more detailed results reside in each specific
heatsink review. |
The heat output from Intel
processors varies widely between single and multi-core processors, so Frostytech
tests heatsinks with two thermal values that represent the upper limits of both
existing CPU families.
With a
150W heat load applied by the Intel LGA775 version of FrostyTech's synthetic
thermal test platform, the Asus Triton 85 heatsink completely fails.
The test was stopped when
temperatures reached 71.5°C over ambient (41.4dBA noise) without any sign of
stabilizing.
According
to the manufacturer with whom Frostytech spoke at length with during Computex
Taipei, the heatsink is rated for thermal loads of up to 130W, however this
information is not indicated on the packaging or manual.

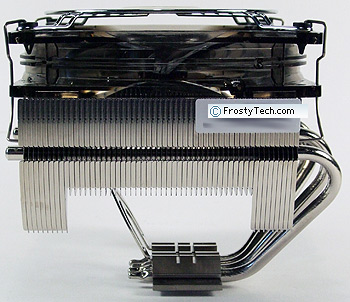

In the
test, the Triton 85's four heatpipes were unable to handle the 150W heat load
and rapidly stalled, causing them to cease functioning. Without functioning
heatpipes the base temperature continued to rise while the aluminum fins
remained relatively cool. The Triton 85 didn't fair particularly well in the
125W AMD test either.
With a 85W heat load
next applied by the Frostytech synthetic test platform, the Asus Triton 85 heatsink was
able to maintain a good 16.2°C rise over ambient temperature at full speed, and
21.2°C at its reduced fan speed (31.8 dBA).
Much like
the Spire Fourier IV and ASUS Triton 75, this heatsink design works fine with
low wattage processors, but completely fails when faced with a 150W heat load. A
heat load of this class represents Intel's top end processors in a stressed
environment.
Ultimately the Asus Triton 85 is only a viable heatsink
for 85W or lower Intel processors (including the new energy efficient 65W
models). Even in that scenario, there are plenty of better heatsinks to choose
from, so bearing that in mind we'd recommend you avoid the Asus Triton 85
heatsink entirely.
Related Articles:
The Top 5 best heatsinks for low noise and low temperature
are ranked here. For more reviews on the latest heatsinks
and cooling solutions, rely on FrostyTech's inventory of 400+ heatsink
reviews. Here are a few other articles that you might enjoy as well.
- Xigmatek HDT-SD964 Exposed Heatpipe Base Heatsink
Review
- Thermolab Micro Silencer TLI-S Heatsink Review
- SilenX iXtrema IXC-120HA2 Heatsink Review
- Noctua NH-U9B Low Noise Heatsink Review
- Sunbeamtech Core-Contact Freezer Heatsink
- ASUS Silent Knight II Heatsink Review
- Coolermaster Hyper Z600 Passive Heatsink Review
