Glacialtech Igloo 5063 Light E Heatsink Review
Glacialtech Igloo 5063 Light E Heatsink Review
  73%
Abstract: The Glacialtech Igloo 5063 Light E heatsink stands 67mm tall and comes with a fixed speed 80mm fan that rotates at a quiet 2600RPM.

 Manufacturer  Category  Published  Author
GlacialTech   Cooling / Heatsinks   Aug 27, 2008   Max Page

Home > Reviews > Page: 360° View - Glacialtech Igloo 5063 Light E Heatsink

360° View - Glacialtech Igloo 5063 Light E Heatsink


Information on Frostytech's test methodology is available here.

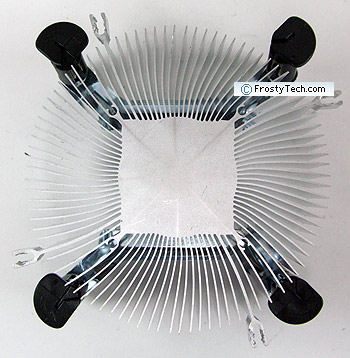

The 80mm fan rotates at a fixed speed of 2600RPM, with power being supplied by a 3-pin fan header. It is not PWM compliant. The extruded aluminum body of the Igloo 5063 heatsink is quite simple, just a 33mm square core and 0.5mm thick fins extending out to an overall diameter of 90mm. It's identical to the Igloo 5058 Light model, but a bit taller.

The extruded aluminum fins are about 36mm high, while the fan measures 25mm thick. Each aluminum fin is ~0.5mm thick, and spaced about 2.5mm apart at the edge. Standard Intel plastic push-to-click tabs are used to install the Igloo 5063 Light heatsink.

The machined aluminum based of the Glacialtech Igloo 5063 Light measures 33x33mm in size, and comes with a pre-applied square of grey thermal compound. The base is flat and fairly smooth.

 Previous Page ° ° Next Page

Table of Contents:

 1:  Glacialtech Igloo 5063 Light E Heatsink Review
 2: — 360° View - Glacialtech Igloo 5063 Light E Heatsink
 3:  Sound Level Measurements: Which Heatsink is Quietest?
 4:  Intel LGA775 Heatsink Temperature Comparisons

List all GlacialTech heat sinks that Frostytech tested?
