Zalman ZM80-HP VGA Heatpipe Cooler Review
Zalman ZM80-HP VGA Heatpipe Cooler Review
  85%
Abstract: The Zalman ZM80-HP was one of the first two coolers to be introduced.

 Manufacturer  Category  Published  Author
Zalman   Cooling / Heatsinks   Mar 09, 2003   Max Page

Home > Reviews > Page: Installation Step: 7

The final step involves adding in the screws and tightening both sides down good. Since we had to loosen up the front side first before installing the rear plate we have to go back and re-tighten those screws as well.

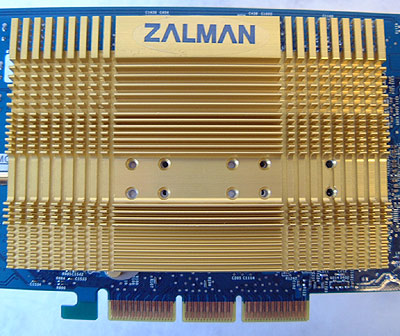

And Voila! We have the Zalman ZM80HP installed on our Albatron Geforce 4 Ti4600 videocard. A couple other things worth noting are that this silent heatpipe cooling system can only be used on video cards which sit below, or to the side of the processor.It won't help to accumulate the heat from the processor after all.

Above all - check out the instructions that come with the unit - they are pretty well written and since there are so many things to consider when installing this type of cooling system a few minutes reading over the instructions won't hurt.
